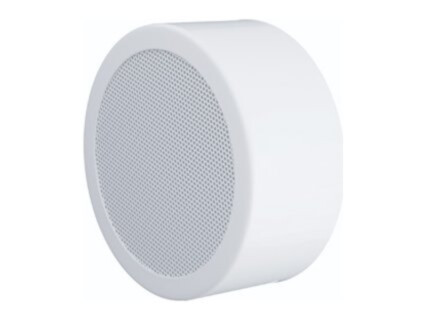

Honeywell surface-mount loudspeaker DAL 165/6 PP, 6 W, ceiling or wall, EN 54-24

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€68.00 €84

In stock 1

SKU

581182

Product files

Datasheet

Product details

Product parameters
Manufacturer	Honeywell

Toote kirjeldus

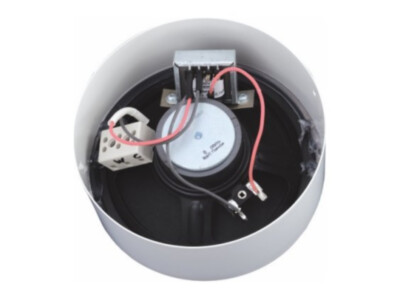

DAL 165/6 PP is a powder-coated metal surface-mount loudspeaker for ceiling or wall, for background music and evacuation announcements in offices, hotels, shopping centres and schools. It has a 165 mm full-range driver with 100 V transformer, a 3-pin ceramic terminal block and a thermal fuse.

Key features

EN 54-24
6 W, 100 V transformer (6/3/1.5/0.75 W)
Surface mounting on ceiling or wall
Ceramic terminal block and thermal fuse
Colour RAL 9010

Technical data

Power	6 W
Power taps (100 V)	6/3/1.5/0.75 W
Driver	165 mm full-range
Sensitivity 1 W / 1 m	91 dB
Max. SPL at 1 m	99 dB
Frequency range	95-17000 Hz
Dispersion angle	180/177.5/107.5/45 °
Protection rating	IP21
Operating temperature	-10 … +55 °C
Material	powder-coated steel panel
Colour	RAL 9010
Dimensions	Ø170x75
Weight	1.05 kg
Certificate	1438-CPR-0684
