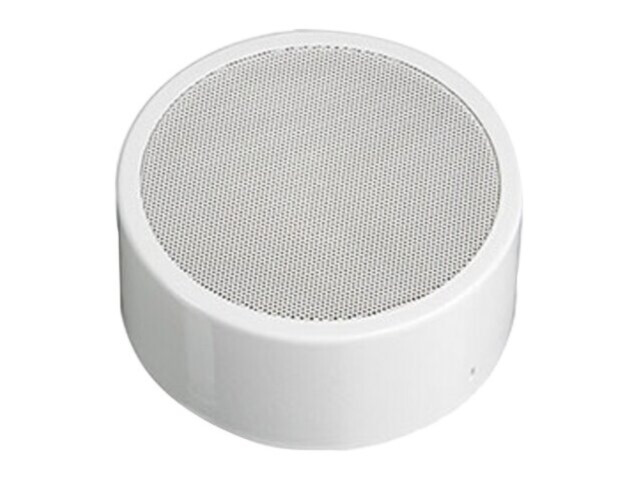

Honeywell surface-mount loudspeaker DL-A 10-165/T, 10 W, 6.5", round, metal, EN 54-24

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€132.00 €164

Pre-order

SKU

582423

Product details

Product parameters
Manufacturer	Honeywell

Toote kirjeldus

DL-A 10-165/T is a white powder-coated metal surface-mount loudspeaker for ceiling or wall. The flat, elegant design with a metal back plate suits unobtrusive installations. Power 10 W, adjustable to 6, 3 or 1.5 W; it has a ceramic terminal and a thermal fuse.

Key features

EN 54-24
10 W, 100 V (10/6/3/1.5 W)
Surface mounting on ceiling or wall
Ceramic terminal and thermal fuse

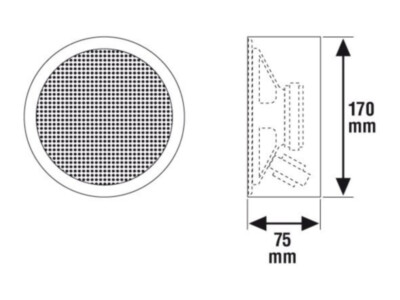

Ø170 mm, depth 75 mm

Technical data

Power	10 W
Power taps (100 V)	10 / 6 / 3 / 1.5 W
Sensitivity 1 W / 1 m	90.7 dB
Max. SPL at 1 m	100.7 dB
Frequency range	290 … 23400 Hz (-10 dB)
Dispersion angle	180° @ 1 kHz
Operating temperature	-20 °C … 80 °C
Colour	white, similar to RAL 9010
Dimensions	Ø170 × 75 mm
Weight	approx. 1.3 kg
