INIM repeater panel | with LCD display | for SmartLine and SmartLight panels | RS485

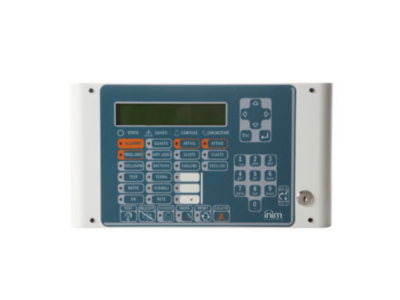

The SmartLetUSee/LCD-Lite is a repeater panel with LCD display, LEDs and keys for INIM SmartLine and SmartLight fire alarm control panels. It shows active events and allows access level 2 operations such as resetting the panel and silencing the sounders. Repeaters are usually installed at the building entrances so that the system status can be seen without going further into the building. The panel connects to the control panel's RS485 bus with a 4-core shielded twisted-pair cable that also carries the power; cable length up to 1000 m. Up to 4 repeaters can be used with one SmartLine panel.

Key features

• LCD display, LEDs and keys
• Active events, level 2 operations (reset, silence)
• RS485, 4-core shielded twisted pair up to 1000 m
• Up to 4 repeaters per SmartLine panel
• 24 V DC supply over the bus cable, 40 mA

Technical data
