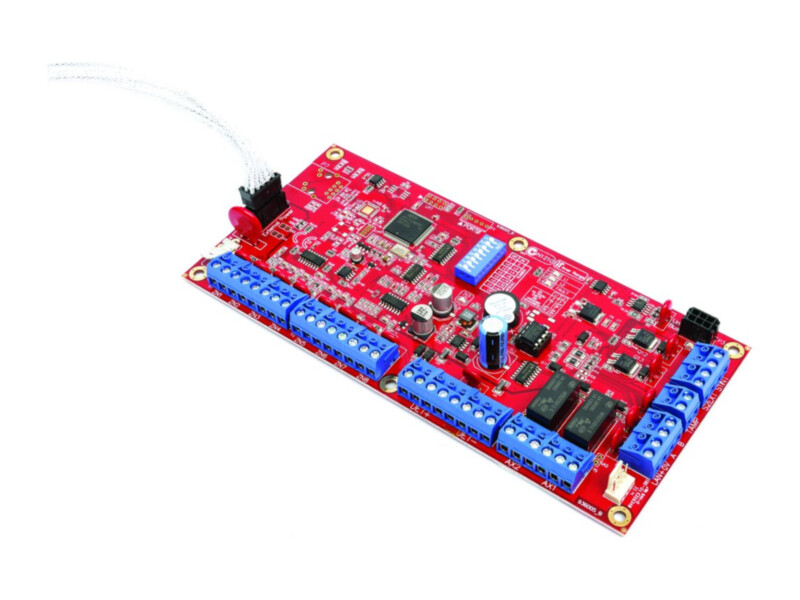

Integriti 8 zone LAN expander, RS-485

The 8 zone LAN expander connects to Inner Range controllers via RS-485 LAN (or IP via Ethernet Bridge) and adds 8 zone inputs, 2 relay outputs and 2 siren drivers. Up to 99 expanders can be connected. Via UniBus further zones and outputs can be added in the same enclosure, up to 32 zones or 32 outputs per module.

Key features

• 8 zones, 2 relays, 2 siren drivers
• RS-485 LAN
• UniBus expansion up to 32 zones
• Detector power 13.75 V
• PCB 200 × 95 mm
