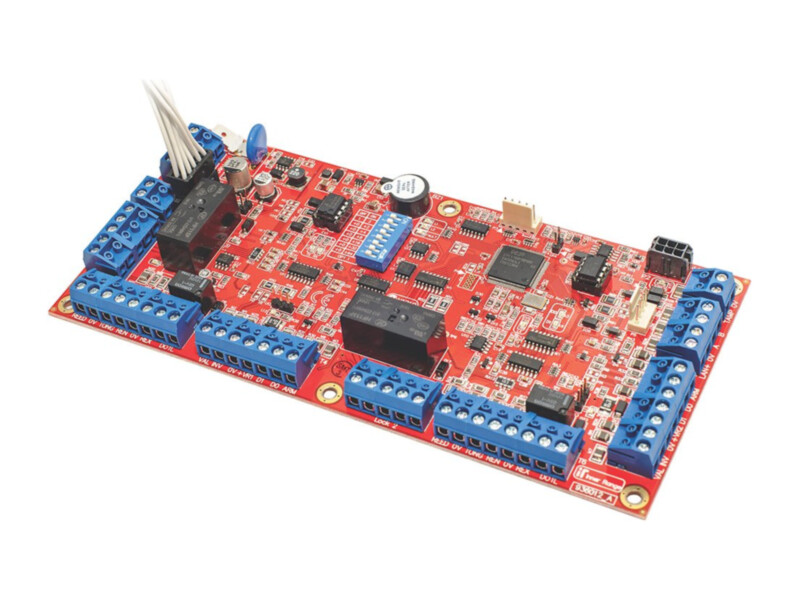

Integriti ILAM intelligent access module, 2–8 doors

The Intelligent LAN Access Module (ILAM) controls and monitors up to 8 doors or lift cars on the Inner Range RS-485 LAN (or IP). The base module supports 2 doors/2 readers, expandable to 8 doors with 2-door expanders via UniBus. It takes up to 16 SIFER or OSDP readers. The on-board database provides access control and event logging even if communication to the controller is lost; buffered events are sent on reconnection.

Key features

• 2 doors, expandable to 8
• Up to 16 SIFER/OSDP readers
• Wiegand up to 88 bits
• Offline intelligence
• UniBus expansion
