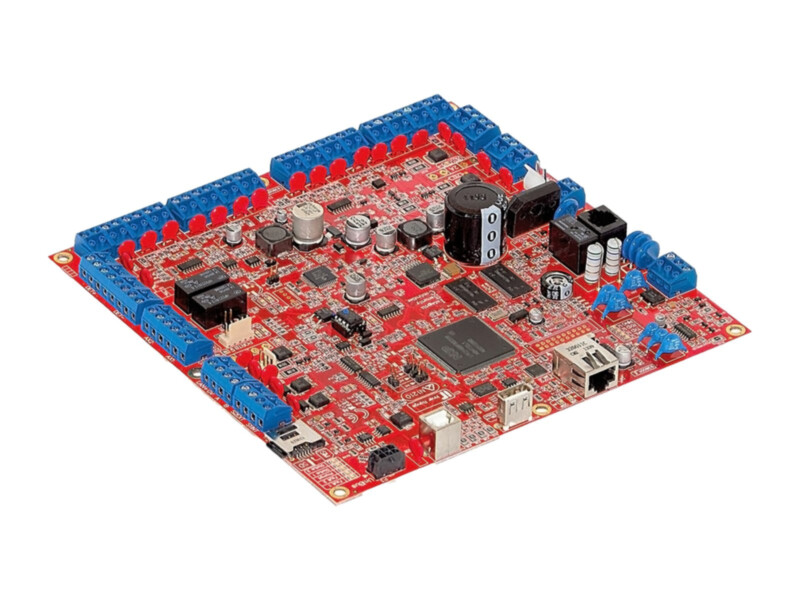

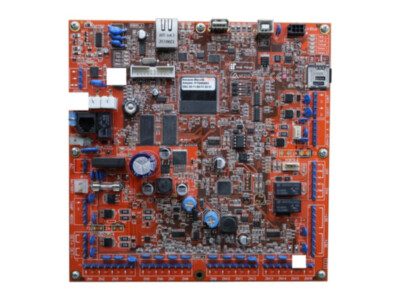

Integriti Security Controller ISC, 16 zones, IP, PCB

The Integriti Security Controller (ISC) is the IP-based master controller of the Integriti modular system. It has 16 zone inputs, 2 relay outputs, power supply, Ethernet port, modem and internal/external siren outputs. The ISC can be used stand-alone or expanded via UniBus and RS-485 Sub-LAN to 3,000 zones, 3,000 outputs, 250 areas, over 1,000 readers and 250 doors. Up to 100,000 users, 1,000,000 with the user expansion kit (996002L5).

Key features

• 16 zones, 2 relays
• Ethernet, RS-485 Sub-LAN, UniBus, USB
• Expandable to 3,000 zones / 250 doors
• Up to 100,000 users
• Siren outputs, PSTN modem
