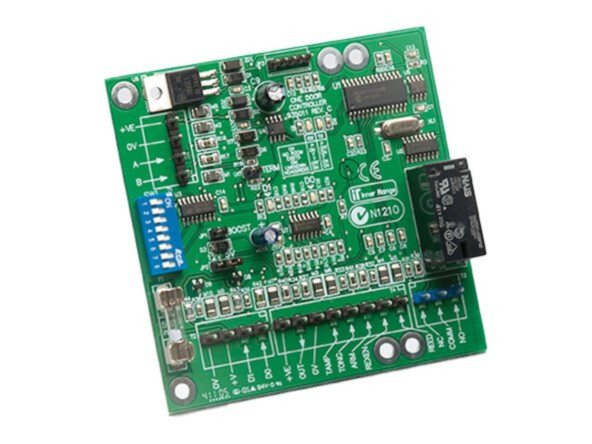

Integriti single door access module, Wiegand, PCB

The single door access module suits sites with few access doors or little installation space, e.g. lift cars and boom gates. It supports one door, one Wiegand or magnetic swipe reader and the inputs and outputs needed to control and monitor a single door. An auxiliary output can be used as a general purpose output, to control reader LEDs or buzzer, indicate Door Open Too Long (DOTL) or give valid/invalid feedback.

Key features

• 1 door, 1 Wiegand or magnetic swipe reader
• Reed and tongue sense monitoring
• REN, REX and arm inputs
• On-board lock relay
• Reader power fuse protection
