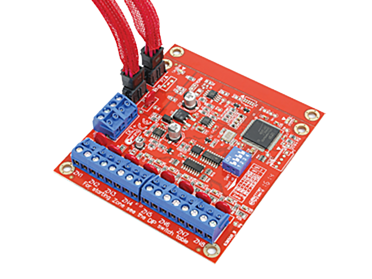

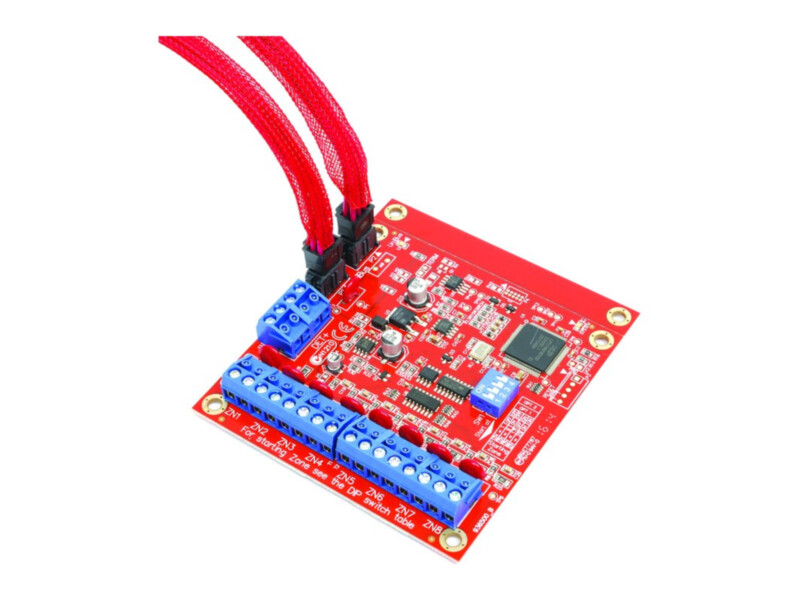

Integriti UniBus 8 zone expander

The UniBus 8 zone expander connects to an Integriti ISC controller or 8 zone LAN expander via the UniBus port and adds 8 zone inputs supporting all zone types incl. multistate and counter inputs, plus detector power terminals (DET+). It is installed in the same tamper-protected enclosure as the host module; UniBus patch cable included.

Key features

• 8 universal zones
• Multistate and counter inputs
• 4 DET+ 13.75 V outputs
• UniBus patch cable included
• C size 94 × 94 mm
