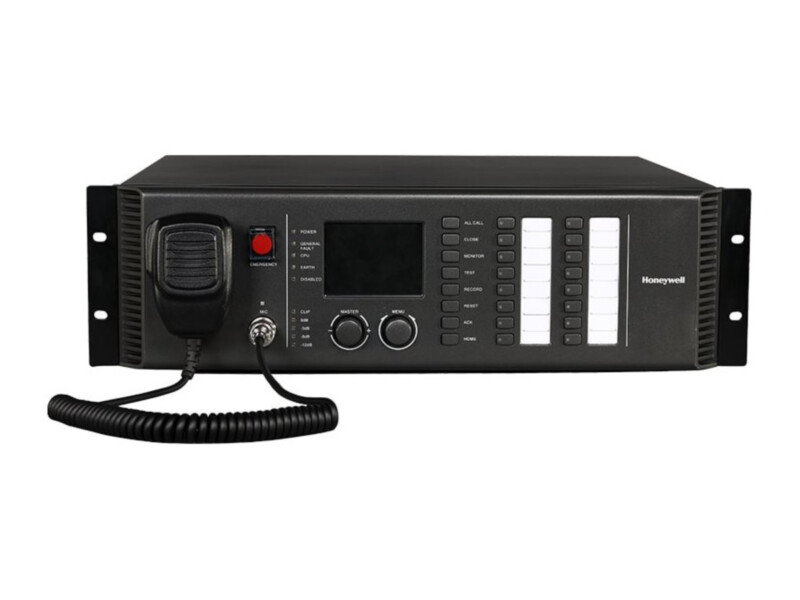

Intevio master control unit RK-MCU, built-in 500 W amplifier, 8 zones, EN 54-16

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€4,487.00 €5,564

Pre-order

SKU

RK-MCU

Product files

Datasheet

Toote kirjeldus

RK-MCU is the central unit of the Intevio system, managing and monitoring all devices. It integrates audio storage, broadcasting, zone control, monitoring, timing and fault diagnosis. The built-in 500 W class D amplifier drives up to 8 loudspeaker zones for small sites; external amplifiers can be added and one spare amplifier can back up all amplifiers. Status and settings are shown on the LCD screen.

Key features

EN 54-16
Built-in 500 W amplifier
Up to 8 zones, 500 W per line
Single and dual channel mode
LCD screen

Technical data

Power supply	AC 100 V … 240 V 50/60 Hz
Backup supply	21.5 V DC … 28.5 V DC
Power consumption	<740 W
Operating temperature	-10°C … +50 °C
Storage temperature	-40°C … +70 °C
Humidity	<95%, without condensing
Dimensions	W: 482 mm H: 133.5 mm D: 420 mm
Weight	14.3 kg
