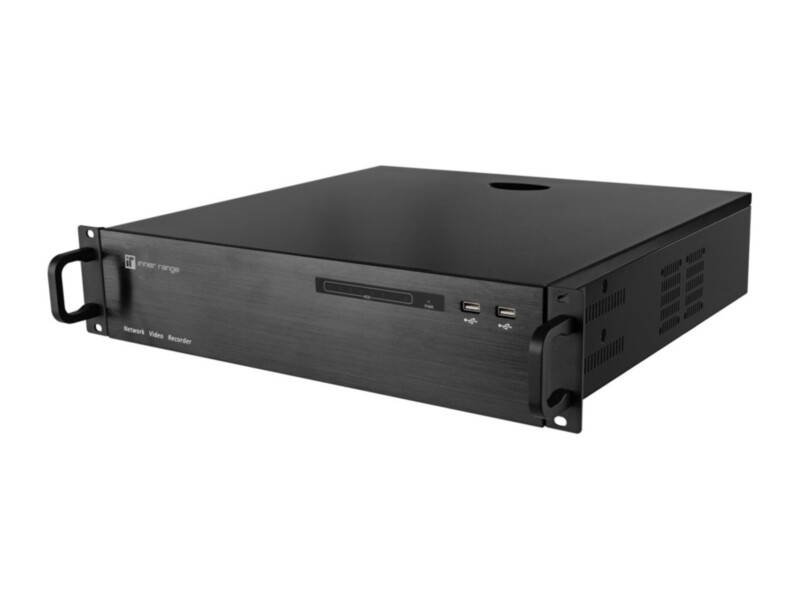

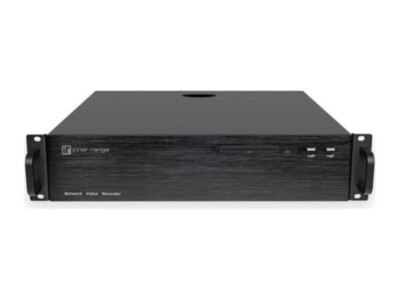

IR Video IR-V-N64C0T-100R-EU Gateway network video recorder (NVR), 64 channels, 8x HDD, 3U, no HDD

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€2,242.00 €2,780

Pre-order

SKU

IR-V-N64C0T-100R-EU

Product files

Datasheet

Toote kirjeldus

The IR Video IR-V-N64C0T-100R-EU is an IR Video Gateway network video recorder for up to 64 IP cameras with up to 400 Mbps incoming bandwidth. It has 8 drive bays (up to 16 TB in total) and supports RAID 1/5/6/10; hard drives are ordered separately. It supports face recognition, specialist IR cameras (people counting, fisheye, panoramic), fisheye de-warping and VCA alarm linkage. IR Video is Inner Range's video surveillance range that forms one unified solution with Integriti and Inception access control and intruder systems: the IR Video Gateway links the cameras to the IR Connect cloud service, and the IR Connect mobile app lets users arm and disarm the site, receive events and alarms and verify them with video.

Key features

Up to 64 IP cameras, up to 400 Mbps incoming
8 drive bays, RAID 1/5/6/10
IR Connect compatible
Face recognition, fisheye de-warping, VCA alarm linkage

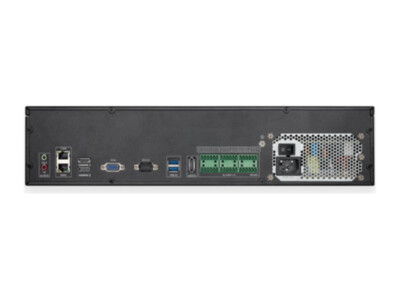

Video outputs: 2 × HDMI, 1 × VGA
No hard drives included; EU power cord

Technical data

Channels	64
Incoming bandwidth	400 Mbps
PoE ports	none
Drive bays	8 (up to 16 TB)
Video outputs	2 × HDMI, 1 × VGA
Case	3U
Network	2 × RJ-45 10/100/1000 Mbps
Power supply	100–240 V AC
Dimensions	440 × 426 × 112 mm
Weight	7.3 kg
