KAC ENscape sounder beacon | red | red flash | low profile base | EN 54-3 | EN 54-23 O

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€68.40 €85

Pre-order

SKU

CWSS-RR-S3

Lõpumüügi toode, hind kehtib ainult laos olevale kogusele.

Product files

Datasheet

Product details

Product parameters
Manufacturer	Honeywell

Toote kirjeldus

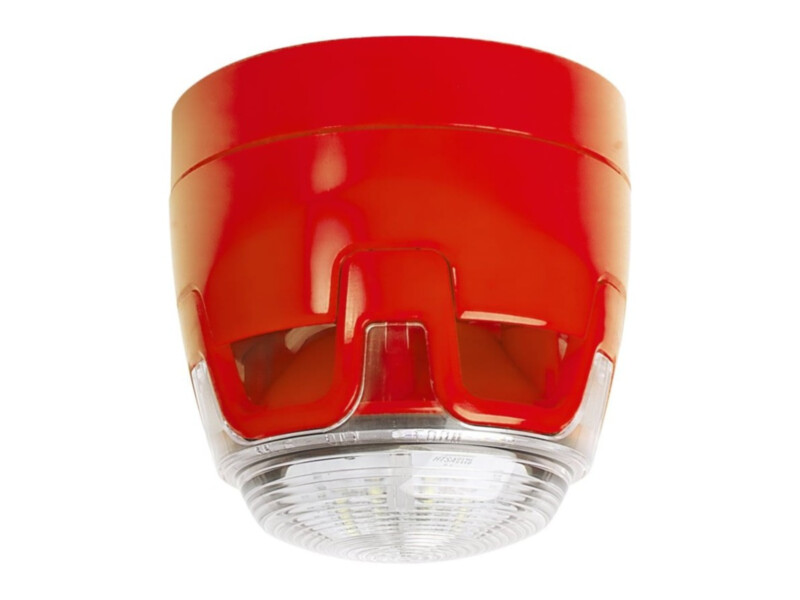

KAC CWSS-RR-S3 is a conventional ENscape sounder beacon with a red body, clear lens and red LED flash, on a low profile base. It is approved both as an audible device (EN 54-3) and as a visual alarm device (EN 54-23, O category – open category, with coverage stated by the manufacturer). The sounder offers 32 tones (incl. a bell tone), two volume settings (high/medium), two-stage operation for phased evacuation and synchronised sound; the beacon flashes at 0.5 Hz and is synchronised. A soft start reduces power surges at system start-up. The low profile base is for indoor use (IP21C).

Key features

EN 54-3 and EN 54-23 O category
Red LED flash 0.5 Hz, synchronised
Up to 107 dB(A) @ 1 m, 32 tones
Wall and ceiling mounting
Low profile base, IP21C

Technical data

Type	conventional sounder beacon
Operating voltage	12–29 V DC (EN 54-23 O category: 24–29 V; EN 54-3: 9–14 V and 18–29 V)
Alarm current	average 22 mA @ 29 V DC (tone 7)
Sound output	max. 107 dB(A) @ 1 m (tone 23)
Tones	32 (incl. bell tone), high/medium volume
Flash rate	0.5 Hz, red LED
EN 54-23 coverage	O category (wall and ceiling)
Mounting	wall or ceiling, low profile base
Protection rating	IP21C
Colour	red body, clear lens
Terminals	0.5–2.5 mm²
Material	flame retardant PC/ABS
Operating temperature	−25…+70 °C
Humidity	93 ± 3 %, non-condensing
Weight	236 g
Standards	EN 54-3, EN 54-23 O
