KAC ENscape sounder | red | deep base | IP65 | EN 54-3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€34.40 €43

In stock 83

SKU

CWSO-RR-W1

Product files

Product details

Product parameters
Manufacturer	Honeywell

Toote kirjeldus

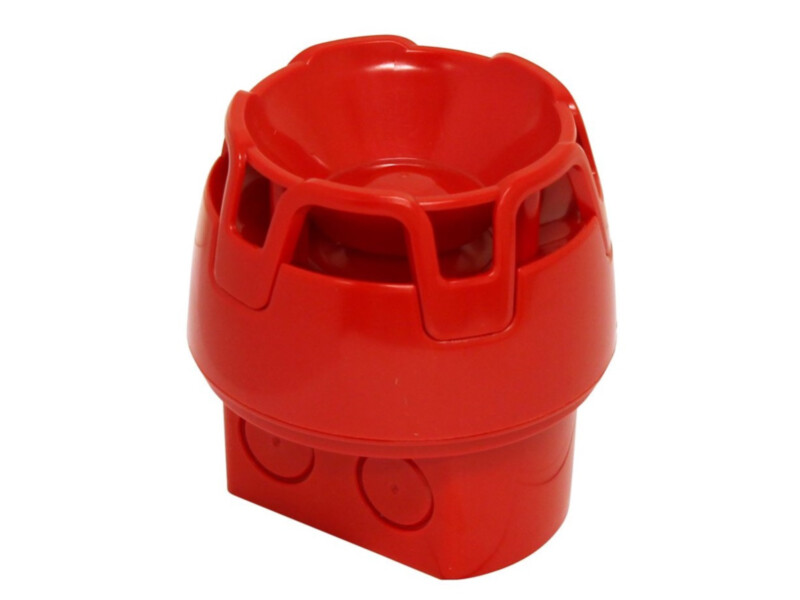

KAC CWSO-RR-W1 is a red conventional ENscape sounder with a deep base. Its folded horn design gives high sound output at low current draw; the sounder offers 32 tones (incl. a bell tone), two volume settings (high/medium), two-stage operation for phased evacuation and synchronised sound. Suitable for wall and ceiling mounting and for 12 V and 24 V systems (fire and security). The deep base with multiple cable entries and an O-ring gives IP65. The sounder complies with EN 54-3.

Key features

Up to 107 dB(A) @ 1 m
32 tones, two volume settings
Two-stage, synchronised
Wall and ceiling mounting
Deep base, IP65
EN 54-3

Technical data

Type	conventional sounder
Operating voltage	9–29 V DC (EN 54-3: 9–14 V and 18–29 V)
Alarm current	average 31 mA @ 29 V DC (tone 8)
Sound output	max. 107 dB(A) @ 1 m (tone 23)
Tones	32 (incl. bell tone), high/medium volume
Mounting	wall or ceiling, deep base
Protection rating	IP65
Colour	red
Terminals	0.5–2.5 mm²
Material	flame retardant PC/ABS
Operating temperature	−25…+70 °C
Humidity	93 ± 3 %, non-condensing
Weight	197 g
Standards	EN 54-3
