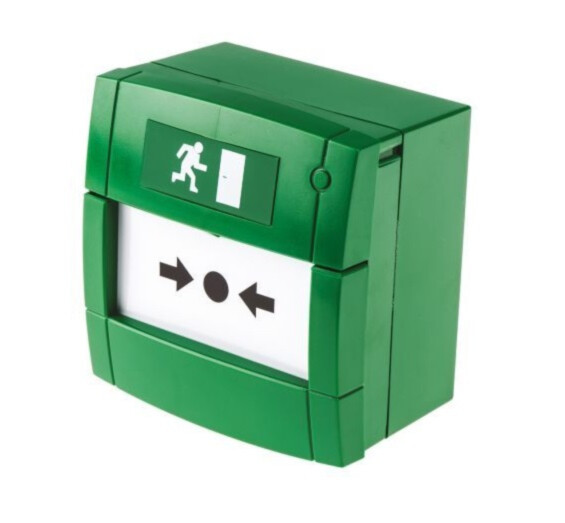

KAC M8 green call point | emergency exit | 3xNO/NC | surface | resettable element

KAC M8A-G000SF-STCK-11 is a green M8 series triple-pole indoor call point, designed above all for access control and doors with magnetic locks. One activation switches three separate circuits: to ensure failsafe unlocking of the exit it is good practice to cut both the positive and negative supply to the magnetic lock with two poles, while the third pole can activate a local alarm or sounder or signal the building's security system. Two function markings are supplied (running man and “Emergency Door Release”). It operates on 12 V and 24 V systems.

Key features

• 3 changeover contacts – one activation switches three circuits
• Cuts both supply lines of a magnetic lock
• Resettable element, interchangeable with a glass element
• Two function markings supplied
• For 12 V and 24 V systems
• “Plug & play” terminal block

Technical data
