KAC WCP3A manual call point | yellow | NO/NC | surface | glass element | IP67 | EN 12094-3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€95.80 €119

Pre-order

SKU

W3A-Y000SG-K013-65

Product files

Datasheet

Product details

Product parameters
Manufacturer	Honeywell

Toote kirjeldus

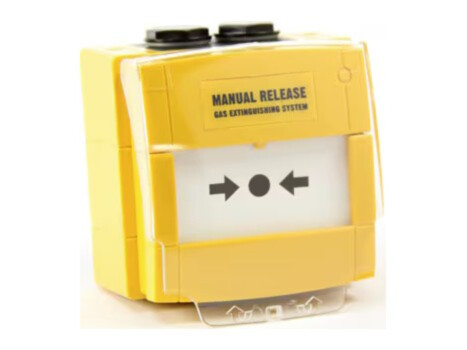

KAC W3A-Y000SG-K013-65 is a yellow WCP3A series call point for gas extinguishing systems, marked “Manual Release”. It has one single-pole changeover contact that can be used as normally open (NO) or normally closed (NC). A plain hinged cover is supplied, giving dual-action operation and preventing accidental activation. The IP67 housing suits outdoor locations and places where water and dust are present. Compliance with EN 12094-3:2003 is verified by Bureau Veritas.

Key features

Marking “Manual Release”
Changeover contact: NO or NC
Glass element, hinged cover included
IP67, for outdoor use
Compact housing with anti-tamper features
EN 12094-3:2003 (Bureau Veritas)

Technical data

Type	extinguishing call point, outdoor
Contacts	1 changeover contact (NO or NC)
Operating element	glass
Mounting	surface, back box included
Marking	“Manual Release”
Colour	yellow
Operating voltage	max. 30 V DC
Relay rating	2 A (switch only)
Terminals	0.5–2.5 mm²
Operating temperature	−25…+70 °C
Humidity	93 ± 3 %, non-condensing
Protection rating	IP67
Material	PC/ABS
In the box	call point with back box, hinged cover, function marking pack, test key and screws, washers
Standards	EN 12094-3:2003 (DoP DOP041)
