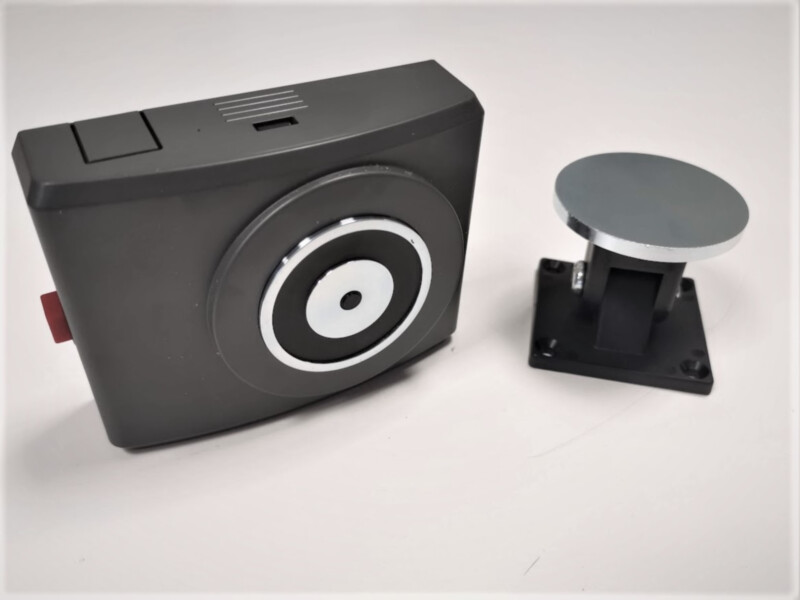

Kendrion GTR048 wall-mounted door holding magnet | black | 24 V DC, 400 N, with release button

The Kendrion door holding magnet holds a fire or smoke door open and releases it when the power is cut (e.g. by the fire alarm panel), after which the door closer shuts the door. The magnet works with an armature plate fixed to the door. Electromagnetic component to VDE 0580: rated voltage 24 V DC, 1.6 W (approx. 66 mA), 100 % duty cycle, holding force 400 N; a release push-button on the housing lets the door also be released by hand. The product complies with EN 1155 (declaration of performance, VdS certificate 0786-CPD-20435). Wall-mounted black housing measuring 110 × 85 × 38 mm (magnet Ø 48 mm); the cable can enter from below or the side.

Technical data
