Knight D25 magnetic contact | white | surface | for wooden doors | G2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€4.24 €5

In stock 20

SKU

D25

Product files

Datasheet

Product details

Product parameters
Manufacturer	Knight
IP kaitseaste	IP20
Turvakategooria	Grade 2
Sobib terasustele	Not recommended
Paigaldusviis	Surface mount

Toote kirjeldus

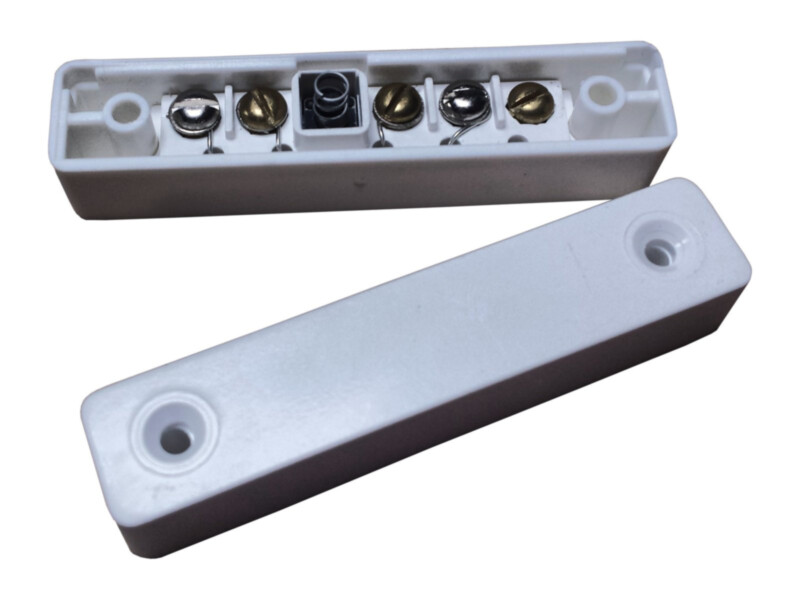

Knight D25 is a surface magnetic contact with a single reed switch and a spring tamper switch that detects removal from the fitting surface, meeting the requirements of security grade 2. The contact has 5 screw terminals: two nickel screws for the reed switch and three spare brass screws for custom requirements. The operating gap is approx. 20 mm. Fitting screws are supplied.

Key features

Security grade 2, environmental class II (indoor)
Tamper switch detects removal from the surface
5 screw terminals, 3 of them spare
Operating gap approx. 20 mm
Fitting screws supplied

Technical data

Type	Surface magnetic contact, single reed
Security grade (EN 50131)	Grade 2
Environmental class	II (indoor controlled)
Operating gap	~20 mm
Tamper	Microswitch (removal from surface)
Terminals	5 screw terminals
Switching voltage	1–100 V DC, max 125 V AC
Max. switching current	500 mA DC / AC
Operating temperature	-40…+50 °C
Dimensions	67 × 14 × 12 mm
Colour	White
