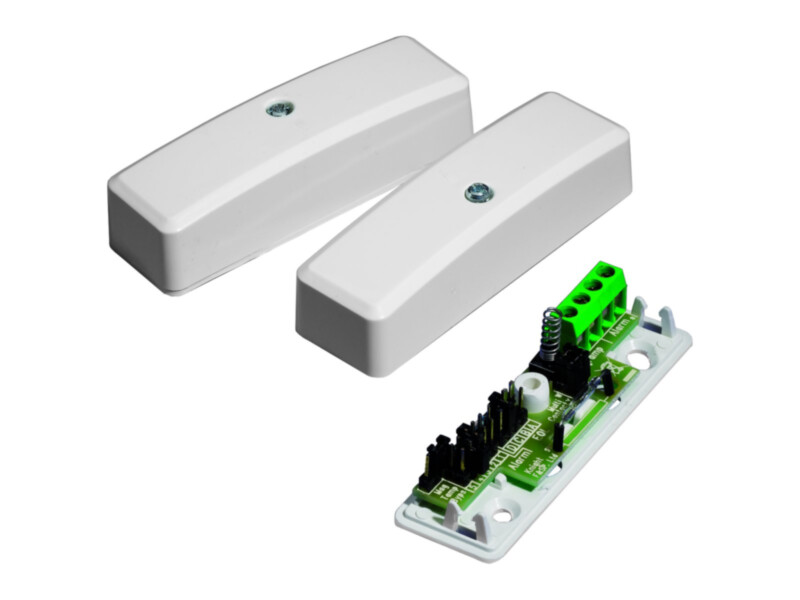

Knight D75MULTI magnetic contact | white | surface | for metal doors | selectable resistors | G2

Knight D75MULTI is a grade 2 surface magnetic contact that is also well suited to double doors and shared zones. Resistors integrated on the circuit board allow 2-wire EOL wiring to most popular control panels (e.g. Honeywell, Texecom, Pyronix, Aritech, HKC, Guardall, Inner Range). The resistor values are selected with jumpers on the PCB pins; the resistors can also be bypassed entirely for traditional 4-wire wiring. Wiring uses four screw-down terminals and a microswitch detects removal of the lid. When mounting on metal, fit the included spacer.

Key features

• Security grade 2, environmental class II
• EOL and alarm resistors selected with jumpers
• Suited to double doors and shared zones
• Operating gap approx. 35 mm
• Microswitch lid tamper
• Spacer for metal surfaces and fitting screws supplied
