Knight E90A magnetic contact | silver | surface | aluminium | 1 m cable | G2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€6.25 €8

In stock 30

SKU

E90A

Product files

Datasheet

Product details

Product parameters
Manufacturer	Knight
IP kaitseaste	IP44
Turvakategooria	Grade 2
Sobib terasustele	Not recommended
Paigaldusviis	Surface mount

Toote kirjeldus

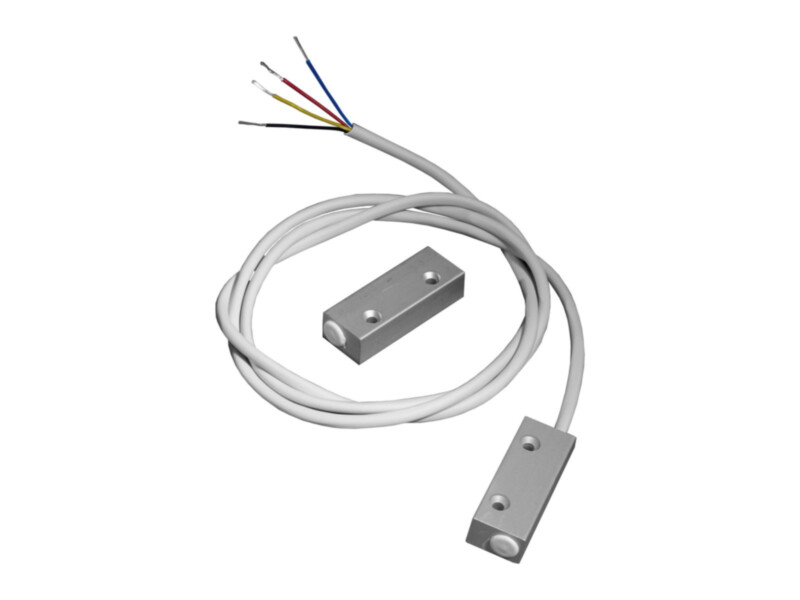

Knight E90A is a small-form surface magnetic contact in a cast aluminium housing, ideal for fitting on patio doors. The internals of the contact are sealed for environmental and tamper protection. A 1 m 4-core fly lead (reed and tamper loop) is pre-fitted for wiring. Fitting screws are supplied.

Key features

Security grade 2, environmental class III (outdoor sheltered)
Cast aluminium housing, sealed internals
1 m 4-core cable with tamper loop
Operating gap approx. 15 mm
Fitting screws supplied

Technical data

Type	Surface magnetic contact, single reed, NC
Security grade (EN 50131)	Grade 2
Environmental class	III (outdoor sheltered)
Operating gap	~15 mm
Tamper	Wire loop in the cable
Connection	1 m 4-core cable (red/yellow – reed, black/blue – tamper)
Switching voltage	1–100 V DC, max 125 V AC
Max. switching current	500 mA DC / AC
Material	Anodised aluminium casting
Operating temperature	-40…+50 °C
Dimensions	40 × 14 × 10 mm
