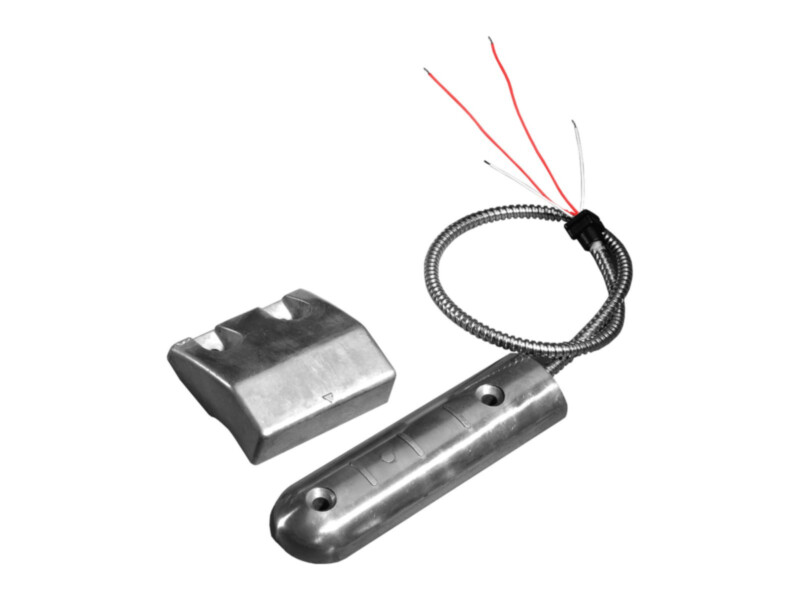

Knight F10A roller door magnetic contact | silver | aluminium | 0.5 m armoured cable | G2

Knight F10A is a heavy-duty roller shutter contact in an anodised aluminium casting. The contact is potted for environmental protection and its 4-wire cable (2 alarm and 2 tamper wires) is protected by a 500 mm stainless steel armoured sleeve; total cable length is 800 mm. The operating gap is approx. 50 mm. Contact and magnet can be mounted horizontally or vertically – line up the marks on both housings for the maximum gap. On steel surfaces the gap may shorten; use spacer SPA-RS.

Key features

• Security grade 2, environmental class III (outdoor sheltered)
• Operating gap approx. 50 mm
• Potted contact in cast aluminium housing
• 4-wire cable 800 mm, 500 mm of it in armoured sleeve
• Horizontal or vertical mounting

Technical data
