Knight J81 junction box, small, 8+2 terminals, 78×24×20 mm, Grade 3, white

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€3.60 €4

In stock 86

SKU

J81

Product files

Datasheet

Toote kirjeldus

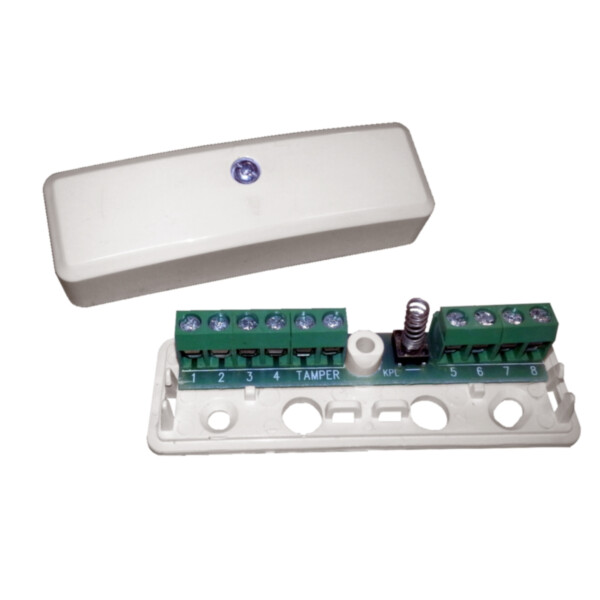

Knight J81 is a slim grade 3 junction box with 8 connection terminals and 2 tamper terminals (TMP). The PCB-mounted spring breaks the tamper circuit when the lid is lifted from the base. Cable can enter from the ends, the back or through knock-outs in the lid. Terminals are wire-clamping.

Key features

Security grade 3, environmental class II
8 + 2 (tamper) wire-clamping terminals
Spring TACT microswitch lid tamper
Cable entry at the ends, back or lid side knock-outs
Slim 78 × 24 × 20 mm housing

Technical data

Security grade (EN 50131)	Grade 3
Environmental class	II (indoor controlled)
Terminals	8 + 2 (tamper), wire-clamping terminal block
Tamper	Spring TACT microswitch (lid)
Cable entry	2 end and 2 side knock-outs, 2 back holes
Max. voltage / current	125 V DC / 230 V AC, 3 A
Operating temperature	-40…+50 °C
Dimensions	78 × 24 × 20 mm
Standards	EN 50131-1, PD 6662:2017
Colour	White
