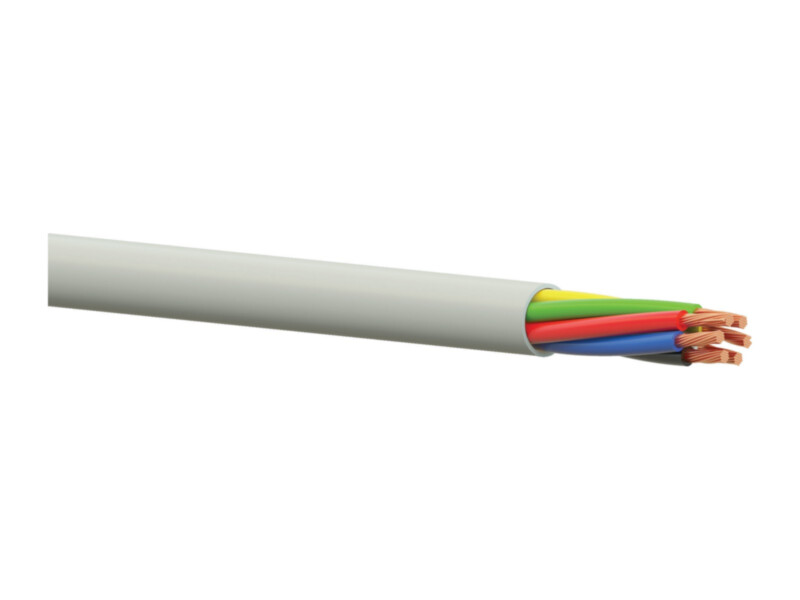

Mekas Kablo LIHH signal cable | 12 × 0.22 mm² | halogen-free | Cca-s1a,d1,a1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Mekas Kablo LIHH signal cable | 12 × 0.22 mm² | halogen-free | Cca-s1a,d1,a1 is available to buy in increments of 0.1

€1.05 €1

Pre-order

SKU

C750012

Product files

Datasheet

Product details

Product parameters
Manufacturer	Mekas Kablo

Toote kirjeldus

Mekas Kablo LIHH is a halogen-free indoor signal cable for security, communication, sound and industrial electronics systems. The stranded flexible copper conductors (class 5) have halogen-free (HFFR) insulation colour-coded to DIN 47100; the cores are twisted in layers and wrapped with polyester tape. The outer sheath is grey halogen-free material. Its reaction-to-fire class under the Construction Products Regulation (CPR, EN 50575) is Cca-s1a,d1,a1.

Key features

12 cores × 0.22 mm², flexible copper (class 5)
Halogen-free insulation and sheath (HFFR)
Core colours to DIN 47100
CPR class Cca-s1a,d1,a1
Cable Ø 6.7 mm

Technical data

Construction	12 × 0,22 mm² (7 × 0,19 mm)
Conductor	stranded copper, class 5
Insulation	HFFR, colours DIN 47100
Sheath	HFFR, grey
Cable diameter	6,7 mm
Conductor resistance	96 Ω/km
Voltage	working 300/500 V, test 1200 V
Operating temperature	-30 … +70 °C
CPR class	Cca-s1a,d1,a1 (EN 50575)
Fire tests	EN 60332-1-2, EN 60754-1/2, EN 61034-2
