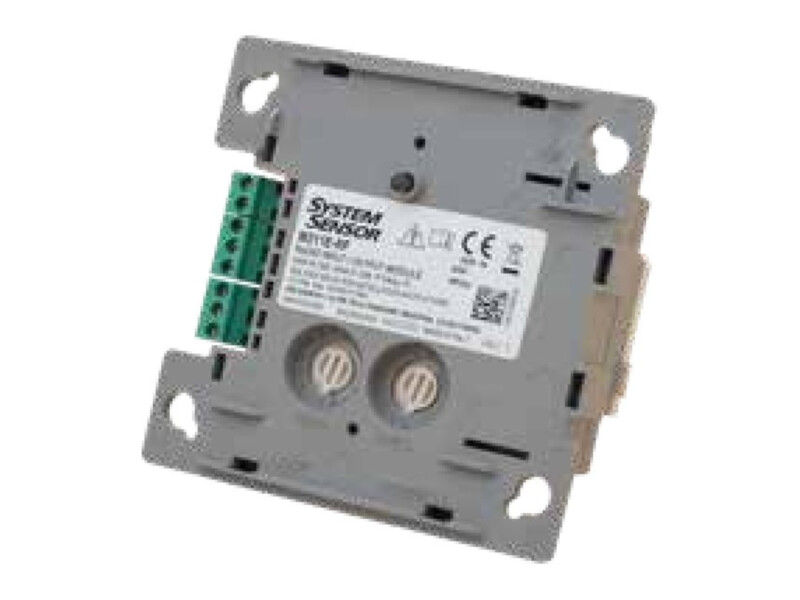

Morley Agile wireless input/output module | 1 input + 1 output | EN 54-18/25

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€331.00 €410

Pre-order

SKU

M211E-RF

Product files

Datasheet

Product details

Product parameters
Manufacturer	Honeywell

Toote kirjeldus

M211E-RF is a wireless module from the Morley Agile series with a separate input and output – for example to monitor a contact of external equipment and control another device where no cable can be run to the loop. The module communicates with the MI-GATE gateway over a mesh radio network, runs on two CR123A batteries and is supplied with a wireless back box.

Key features

1 input + 1 output
Wireless mesh network (EN 54-25)
EN 54-18
2 × CR123A batteries
Back box included

Technical data

Inputs/outputs	1 input, 1 output
Standards	EN 54-18, EN 54-25
Radio frequency	865–870 MHz
Transmit power	< 25 mW e.r.p.
Batteries	2 × CR123A 3 V
Dimensions	125 × 125 × 58 mm (H × W × D)
Weight	317 g (with batteries)
Operating temperature	−20 … +60 °C
Humidity	5–93 %, non-condensing
