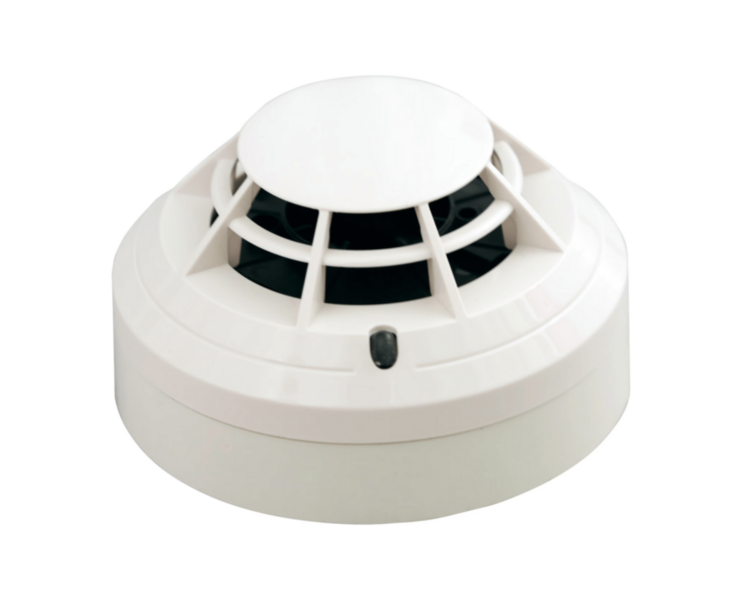

Morley HM heat detector 58 °C | addressable | with isolator | EN 54-5 A1S

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€36.60 €45

In stock 27

SKU

HM-FHSE-I-AP

Product files

Datasheet

Product details

Product parameters
Manufacturer	Honeywell

Toote kirjeldus

HM-FHSE-I-AP is an analogue addressable heat detector from the Morley HM series that uses a low-mass thermistor and a microprocessor for fast, linear temperature sensing. It alarms at 58 °C (class A1S), and two red LEDs show its status from every direction. The built-in isolator cuts off only the faulty section of the loop in case of a short circuit. The detector uses the Advanced Protocol and fits the MI/B501AP/IV base; the address is set with rotary switches.

Key features

Fixed 58 °C response, class A1S (EN 54-5)
Built-in short-circuit isolator (EN 54-17)
Advanced Protocol, address set with rotary switches (01–159)
2 red LEDs, visible 360°
Fits the MI/B501AP/IV base
LPCB approved

Technical data

Type	heat detector, fixed 58 °C
Standards	EN 54-5 A1S, EN 54-17
Operating voltage	15–28 V DC
Standby current	160 µA @ 24 V DC (300 µA with LED blink)
LED current	3.5 mA @ 24 V DC
Remote indicator output	22.5 V DC / 10.8 mA @ 24 V DC
Terminals	up to 2.5 mm²
Colour	ivory
Material	PC/ABS
Dimensions	Ø 102 mm, height 61 mm (with base)
Weight	88 g (with base)
Operating temperature	−30 … +70 °C
Humidity	10–93 %, non-condensing
