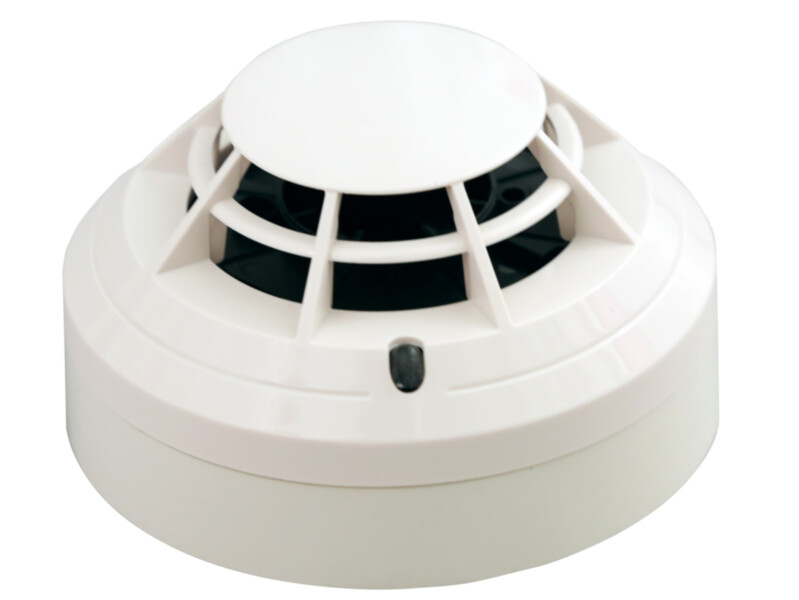

Morley HM optical smoke and heat detector | multisensor | addressable | with isolator | EN 54-5/7

HM-PTSE-I-AP is an optical-heat multisensor detector from the Morley HM series. Heat sensing assists the optical smoke sensor, which gives better immunity to false alarms and a faster response to a wide range of developing fires. Both sensors work as one unit under software control; the panel can change the sensitivity of each, and during the day, when normal activity may cause false alarms, the detector can be set to work as a heat detector only. The built-in isolator cuts off only the faulty loop section in case of a short circuit; it fits the MI/B501AP/IV base.

Key features

• Optical smoke sensor (EN 54-7) + heat sensor 58 °C and rate of rise (EN 54-5 A1R)
• 6 sensitivity levels, heat-only mode
• Built-in short-circuit isolator (EN 54-17)
• Advanced Protocol, address set with rotary switches (01–159)
• 2 red LEDs, visible 360°
• Fits the MI/B501AP/IV base
