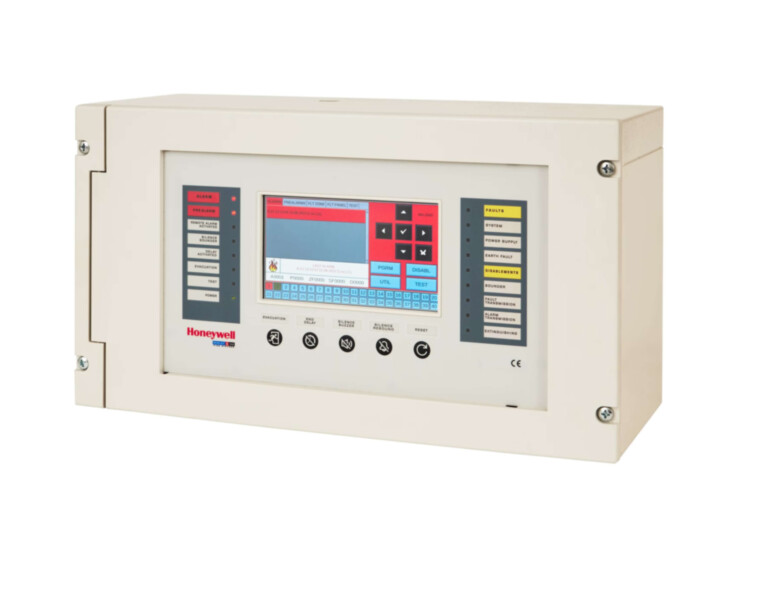

Morley MAx MA-2000 addressable fire alarm panel | 2 loops | 7" touch screen | for 2x17 Ah batteries

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€2,179.00 €2,702

In stock 2

SKU

MA-2000-03

Product files

Datasheet

Product details

Product parameters
Manufacturer	Honeywell
Length	265
Width	483
Height	218

Toote kirjeldus

Morley MAx MA-2000 is a two-loop multiprocessor fire detection panel for hotels, offices, hospitals and industrial buildings. The 7" TFT touch screen and the dedicated keys below it make daily operation simple; panels are networked over two opto-isolated CAN bus lines into a fail-safe closed-loop network of up to 64 panels or 128 loops. The panel can be wall mounted, flush mounted with the MA-2BZL bezel or installed in a 19" rack (6U).

Key features

2 addressable loops, each up to 99 detectors + 99 modules (Morley-IAS protocol)
7" TFT touch screen (800 × 480), 40 virtual zone LEDs
CAN bus network: up to 64 panels or 128 loops
Up to 2000 zones, control-by-event (CBE) equations
Event log of 10,000 events, 4 access levels to EN 54-2
Wall, flush (MA-2BZL) or 19" rack mounting
EN 54-2, EN 54-4, EN 54-13

Technical data

Loops	2
Devices per loop	99 detectors + 99 modules
Display	7" TFT touch screen, 800 × 480
Network	CAN bus, up to 64 panels / 128 loops
Mains supply	100–240 V AC, 50/60 Hz, max. 1.7 A @ 230 V AC
Batteries	2 × 12 V, max. 17 Ah
Loop current	750 mA
Outputs	1 fault (NO/NC); 1 alarm + 2 programmable (NO/NC or monitored 1 A)
Sounder output	1, monitored, 1 A
24 V DC output	max. 1 A
Interfaces	USB, RS485 (repeaters), RS232/RS485
Standards	EN 54-2, EN 54-4, EN 54-13
Protection rating	IP30
Colour	RAL 9002
Dimensions	483 × 265 × 217.5 mm (W × H × D), 6U
Weight	6 kg
Operating temperature	−5 … +40 °C
Storage temperature	−10 … +50 °C
Humidity	5–95 %, non-condensing
