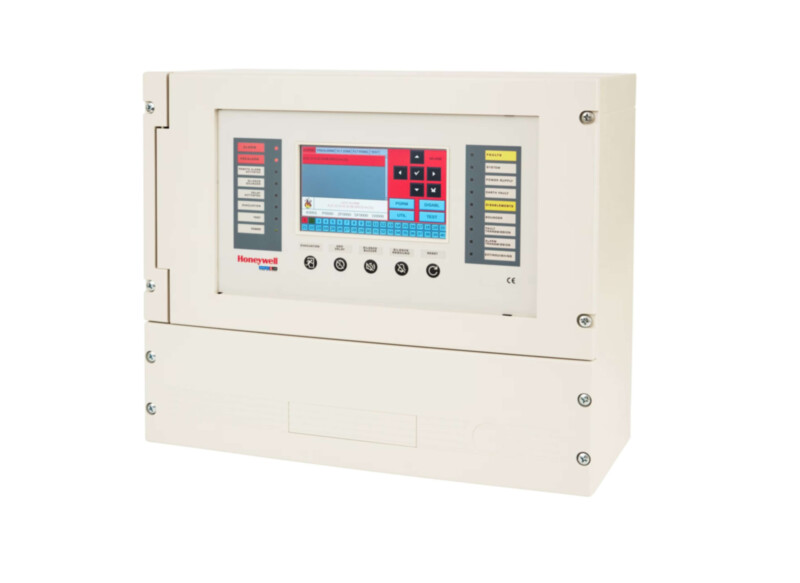

Morley MAx MA-8000 addressable fire alarm panel | 4 loops, expandable to 8 | 7" touch screen | for 2x38 Ah batteries

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€3,101.00 €3,845

In stock 1

SKU

MA-8000-03

Product files

Datasheet

Product details

Product parameters
Manufacturer	Honeywell

Toote kirjeldus

Morley MAx MA-8000 is a multiprocessor fire detection panel for larger sites. It comes with 4 loops as standard; with two MA-LIB2-03 expansion cards it grows to 6 or 8 loops in the same enclosure, which also holds batteries of up to 38 Ah. Panels are networked over two opto-isolated CAN bus lines into a closed-loop network of up to 64 panels or 128 loops, and the whole network can be configured from one point with the MA-Tool software.

Key features

4 addressable loops, up to 8 with MA-LIB2-03 cards
Each loop up to 99 detectors + 99 modules (Morley-IAS protocol)
7" TFT touch screen (800 × 480), 40 virtual zone LEDs
CAN bus network: up to 64 panels or 128 loops
Up to 2000 zones, event log of 10,000 events
Batteries up to 2 × 38 Ah in the same enclosure
EN 54-2, EN 54-4, EN 54-13

Technical data

Loops	4, expandable to 6 or 8 (MA-LIB2-03)
Devices per loop	99 detectors + 99 modules
Display	7" TFT touch screen, 800 × 480
Network	CAN bus, up to 64 panels / 128 loops
Mains supply	100–240 V AC, 50/60 Hz, max. 2.4 A @ 230 V AC
Batteries	2 × 12 V, max. 38 Ah
Loop current	750 mA per loop
Outputs	1 fault (NO/NC); 1 alarm + 2 programmable (NO/NC or monitored 1 A)
Sounder output	1, monitored, 1 A
24 V DC output	max. 1 A
Interfaces	USB, RS485 (repeaters), RS232/RS485
Standards	EN 54-2, EN 54-4, EN 54-13
Protection rating	IP30
Colour	RAL 9002
Dimensions	483 × 398 × 217.5 mm (W × H × D), 9U
Operating temperature	−5 … +40 °C
Storage temperature	−10 … +50 °C
Humidity	5–95 %, non-condensing
