Morley MAx MA-LCD7 repeater panel | 7" touch screen | repeater or zonal mimic

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€1,110.00 €1,376

Pre-order

SKU

MA-LCD7

Product files

Datasheet

Product details

Product parameters
Manufacturer	Honeywell

Toote kirjeldus

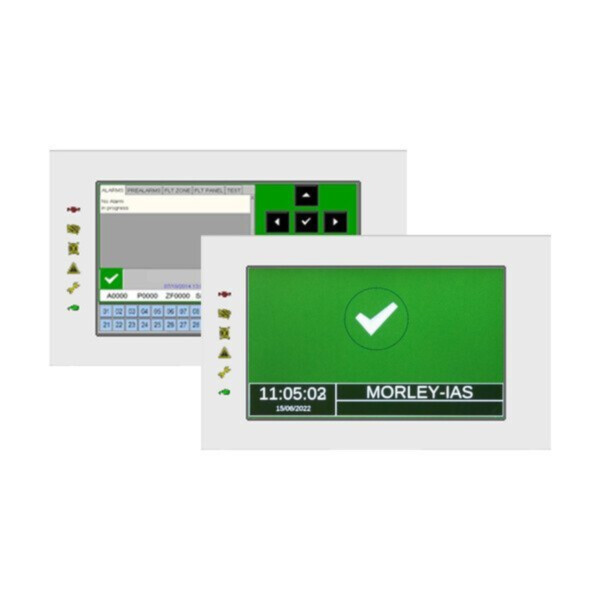

MA-LCD7 is a slim panel with a 7" colour touch screen for Morley MAx fire panels. As a repeater it shows the events of the whole network and, at access level 2, allows mute buzzer, silence/resound and reset; as a zonal mimic it shows up to 80 virtual zones from a freely chosen range of 1–1120. Up to 16 panels connect to the RS485 port of one MAx panel and are powered from the panel's 24 V output. The Easy Fix plate fits most standard single and double electrical back boxes.

Key features

7" TFT colour touch screen
Repeater (40 zones) or zonal mimic (80 zones from 1–1120)
Up to 16 panels per MAx panel (RS485)
6 LED indicators and internal buzzer
USB port for the event log (10,000 events) and firmware
Easy Fix plate for surface and back box mounting

Technical data

Compatible with	Morley MAx panels
Display	7" TFT touch screen, 256 colours
Connection	RS485 2-wire, addresses 1–16
Operating voltage	11–30 V DC
Standby current	73 mA @ 24 V DC
Alarm current	130.6 mA @ 24 V DC
Interfaces	USB type A
Protection rating	IP30
Colour	body RAL 9002, frame RAL 7035
Dimensions	220.7 × 132.7 × 37.7 mm (W × H × D)
Weight	500 g
Operating temperature	−5 … +50 °C
Storage temperature	−10 … +60 °C
Humidity	up to 95 %, non-condensing
