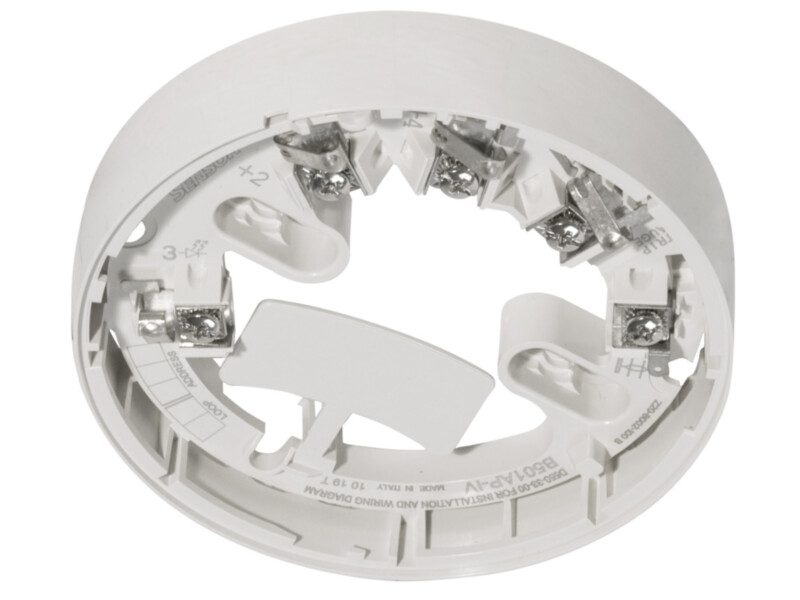

Morley MI/B501AP/IV detector base | low profile | ivory

MI/B501AP/IV is the standard low-profile base for Morley addressable detectors and audio-visual devices. The base is fitted and wired first, and the detector or sounder is twisted on later. It has screw terminals for wires up to 2.5 mm², an anti-removal lock option and a place for the address label. It fits the HM series detectors and the WSS/WSO wall sounders and sounder strobes.

Key features

• Low-profile base for detectors and wall sounders
• Screw terminals up to 2.5 mm²
• Anti-removal lock option
• Place for the address label
• Ivory, matches the HM detectors

Technical data
