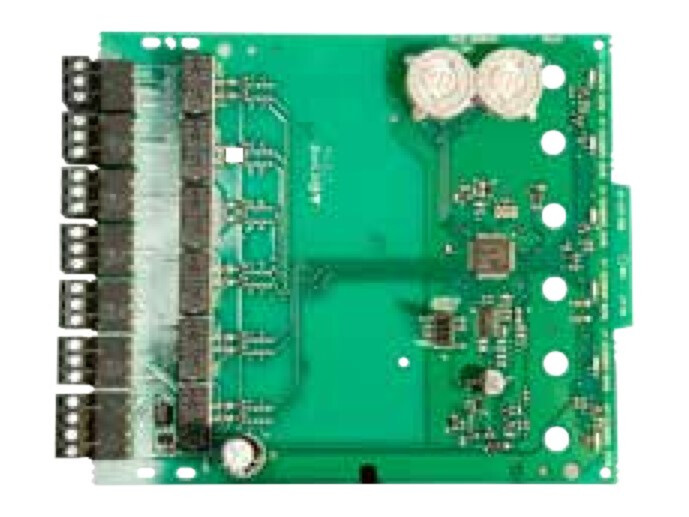

Morley MI-CR6-S2I relay output module | 6 changeover relays | with isolator

MI-CR6-S2I has six Form C (changeover) relays, each on its own address. The first address is set with rotary switches from 01 to 94 and the next five are assigned automatically; up to three unused addresses can be disabled. Each address provides one isolated set of volt-free contacts that can be wired normally open or normally closed, and the panel switches the contacts on demand. The controlled circuit is not supervised. Each relay has its own LED.

Key features

• 6 volt-free changeover relays, 3 A @ 30 V DC
• Each relay on its own address, unused addresses can be disabled
• Built-in loop isolation
• Individual LED per relay
• Class A or B wiring
• Removable plug-in terminal blocks
