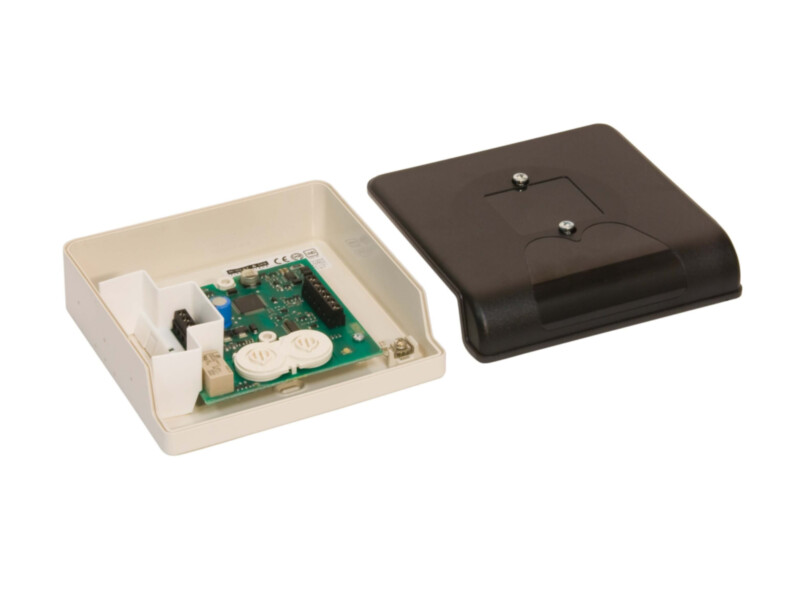

Morley MI-D240CMO output module | 1 relay 240 V AC / 5 A | with isolator | with surface box

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€116.10 €144

Pre-order

SKU

MI/D240CMO

Product files

Datasheet

Product details

Product parameters
Manufacturer	Honeywell
Length	134
Width	139
Height	40

Toote kirjeldus

MI-D240CMO is a Morley-IAS addressable output module whose double-pole relay switches the 240 V AC (nominal 220 V AC) supply of external equipment on command from the panel – for example to control ventilation, door holders or other equipment in case of fire. The module has a built-in loop short-circuit isolator and is supplied with a surface box for wall mounting.

Key features

Double-pole relay 5 A @ 240 V AC / 5 A @ 30 V DC
Switches the mains supply of external equipment
Built-in loop isolator
Surface box included
EN 54-17, EN 54-18

Technical data

Operating voltage	15–30 V DC
Standby current	275 µA @ 24 V DC (445 µA with LED blink)
Relay rating	double pole, 5 A @ 240 V AC, 5 A @ 30 V DC (resistive)
Standards	EN 54-17, EN 54-18
Mounting	in surface box (included)
Dimensions	139 × 134 × 40 mm (with box)
Weight	195 g
Operating temperature	−20 … +60 °C
Humidity	0–95 %, non-condensing
