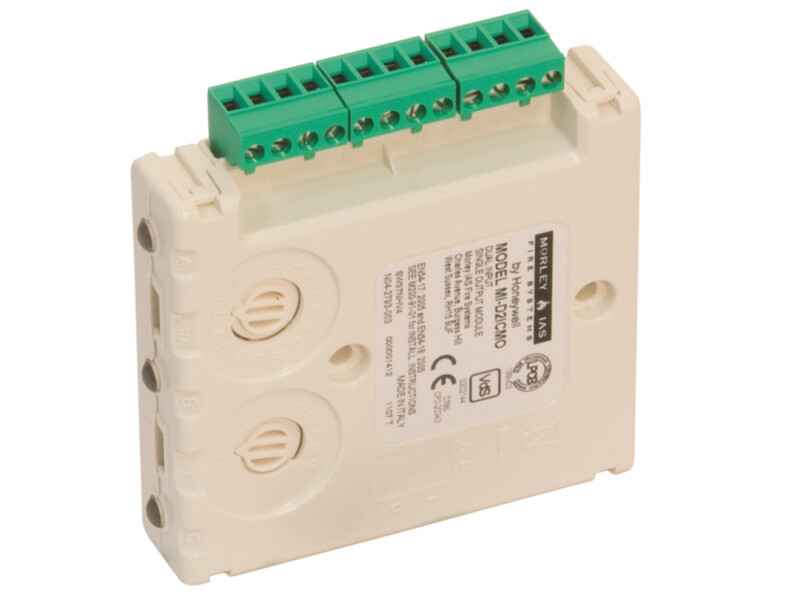

Morley MI-D2ICMOE input/output module | 2 inputs + 1 relay | with isolator | EN 54-17/18

MI-D2ICMOE belongs to Morley's new generation of input/output modules. It monitors two input circuits from external devices and provides one unmonitored volt-free changeover contact on command from the panel. The inputs support both latched and analogue supervision: normal, open circuit and alarm/short are distinguished, and in analogue mode a signal proportional to the circuit resistance is returned. The module mounts in a standard wall box, on a DIN rail (built-in brackets) or in an M200E-SMB box; the address switch and the tri-colour LED are visible from both sides.

Key features

• 2 monitored inputs + 1 volt-free changeover relay
• Relay 2 A @ 30 V DC
• Built-in short-circuit isolator, selectable
• Address set with rotary switches, tri-colour LED
• In a wall box, on a DIN rail or in an M200E-SMB box
• EN 54-17, EN 54-18
