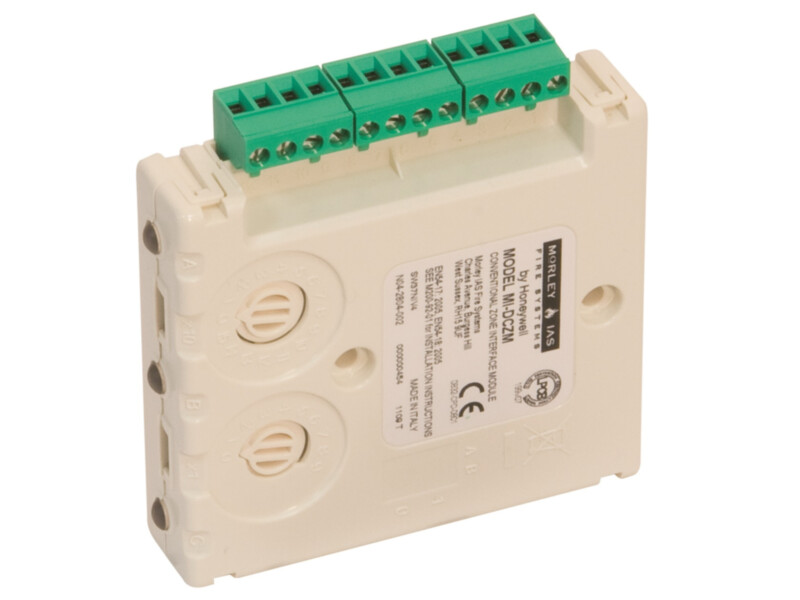

Morley MI-DCZRME conventional zone module | addressable | with isolator | EN 54-17/18

MI-DCZRM connects a two-wire zone of conventional detectors to a Morley-IAS protocol addressable system, so existing zones can be taken over by a new panel. The module monitors the zone for open and short circuit and also reports a fault when the external fault input is pulled low (e.g. for power supply monitoring). The zone can be powered from the loop or from an external 24 V power supply; with external power the loop is fully isolated from the zone and the power supply. Up to 20 conventional detectors per zone are recommended. The module mounts on a DIN rail or in an M200E-SMB box.

Key features

• Conventional detector zone into an addressable system
• Open and short circuit monitoring, external fault input
• Powered from the loop or an external 24 V supply
• Remote reset of the zone
• Built-in isolator, tri-colour status LED
• DIN rail or M200E-SMB box mounting
• EN 54-17, EN 54-18, LPCB
