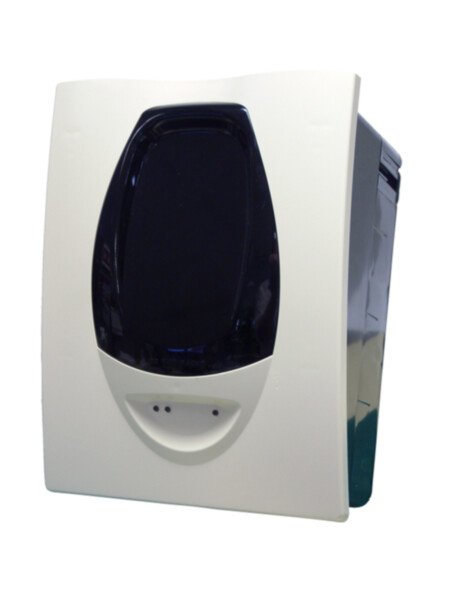

Morley MI-LPB2-S3I addressable reflective beam detector | 10–70 m, 100 m with 6500-LRK | EN 54-12

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€1,457.00 €1,807

Pre-order

SKU

MI-LPB2-S3I

Product files

Datasheet

Product details

Product parameters
Manufacturer	Honeywell

Toote kirjeldus

MI-LPB2-S3I is an addressable reflective linear optical smoke detector for protecting large open spaces such as warehouses and atriums. Transmitter and receiver are in one housing: the infrared beam is directed at a reflector and smoke is detected from the weakening of the returned signal. The detector connects directly to the analogue loop and is powered from it. Numeric indicators help with beam alignment; 4 fixed sensitivity levels or 2 automatic modes can be selected.

Key features

Combined transmitter/receiver + reflector
Range 10–70 m, up to 100 m with the 6500-LRK kit
Loop powered, addressable, rotary switches
4 fixed sensitivity levels + 2 automatic modes
Numeric alignment indicators, LEDs
EN 54-12, EN 54-17

Technical data

Type	reflective linear optical smoke detector
Range	10–70 m (up to 100 m with 6500-LRK)
Standards	EN 54-12, EN 54-17
Operating voltage	15–32 V DC
Standby current	2 mA @ 24 V DC
Alarm current	max. 8.5 mA (alignment max. 20 mA)
Terminals	up to 2.5 mm²
Colour	white trim, black back box
Dimensions	detector 254 × 190 × 84 mm; reflector 230 × 200 mm
Operating temperature	−30 … +55 °C
