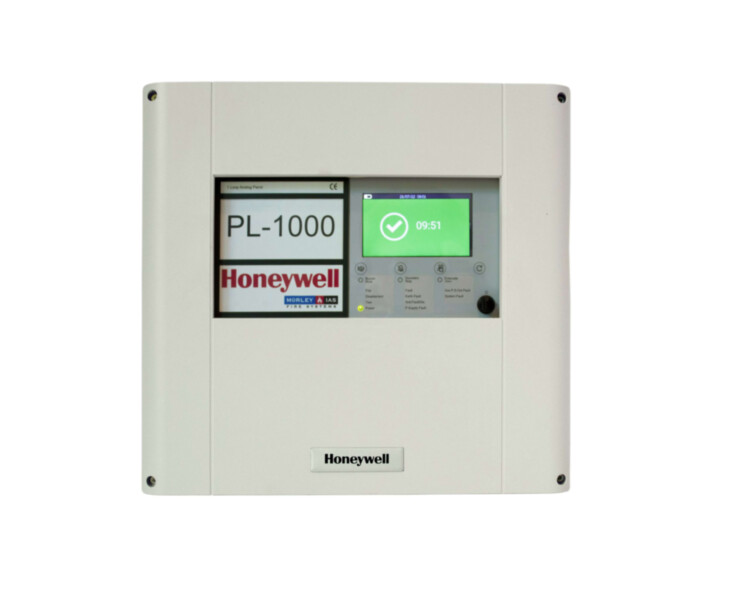

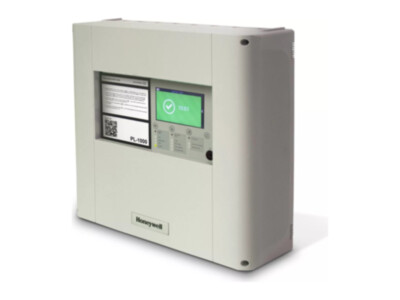

Morley Plus PL-1000 addressable fire alarm panel | 1 loop, expandable to 2 | 4.3" touch screen | for 2x12 Ah batteries

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€1,074.00 €1,332

Pre-order

SKU

PL-1000

Product files

Product details

Product parameters
Manufacturer	Honeywell
Length	356
Width	379
Height	120

Toote kirjeldus

Morley Plus PL-1000 is a compact addressable fire alarm panel that uses Honeywell's Advanced Protocol (AP) for fast alarm detection and the most detailed information for the installer. The whole system can be configured straight from the 4.3" touch screen, so commissioning and testing of field devices take little time. The panel handles both wired devices and Agile wireless devices; each loop takes up to 159 detectors and 159 input/output modules, and the PL-LIB01 card adds a second loop.

Key features

1 loop, 2 loops with the PL-LIB01 card
Each loop up to 159 detectors + 159 modules (Advanced Protocol)
4.3" colour touch screen (480 × 272), 16 virtual zone LEDs
Configuration straight from the screen, dot-matrix cause and effect rules
Supports Agile wireless devices
2 monitored sounder outputs, alarm and fault relays
EN 54-2, EN 54-4

Technical data

Loops	1, expandable to 2 (PL-LIB01)
Devices per loop	159 detectors + 159 modules
Display	4.3" colour touch screen, 480 × 272
Mains supply	100–240 V AC ±15 %, 50/60 Hz
Power consumption	max. 65 W
Batteries	7 Ah or 12 Ah (not included)
Sounder output	2 monitored, max. 250 mA each
24 V DC output	max. 500 mA
Outputs	alarm relay and fault relay (C/NC/NO)
Loop length	up to 1500 m (depending on cable and current draw)
Standards	EN 54-2, EN 54-4
Protection rating	IP30
Colour	RAL 9002 (front cover)
Dimensions	379 × 356 × 120 mm (W × H × D)
Weight	1.76 kg
Operating temperature	0 … +40 °C
Humidity	5–95 %, non-condensing
