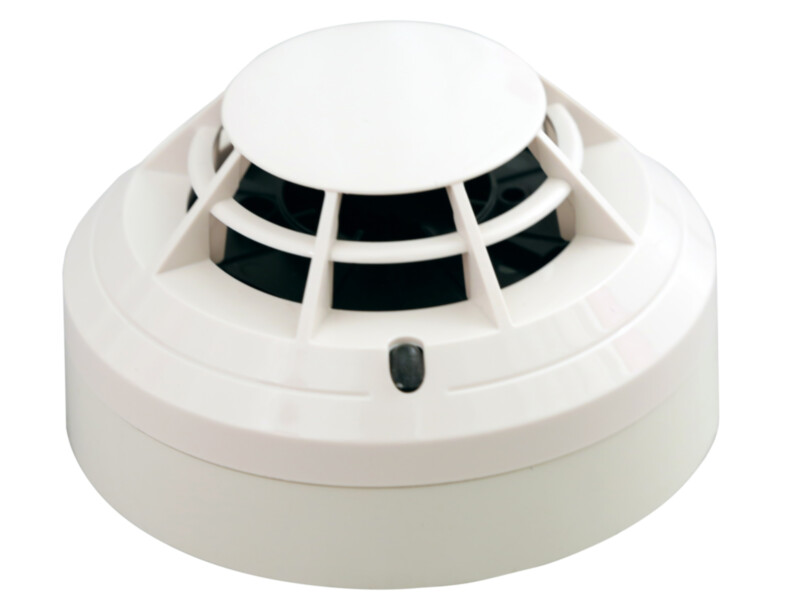

Morley HM rate-of-rise heat detector | addressable | with isolator | EN 54-5 A1R

HM-RHSE-I-AP is an analogue addressable rate-of-rise heat detector from the Morley HM series. Its thermistor and microprocessor raise an alarm when the temperature rises faster than typically 10 °C per minute or exceeds 58 °C (class A1R). Two red LEDs show the status from every direction, and the built-in isolator cuts off only the faulty loop section in case of a short circuit. The detector uses the Advanced Protocol and fits the MI/B501AP/IV base. Not for locations where the normal ambient temperature exceeds 50 °C.

Key features

• Rate of rise ~10 °C/min or 58 °C, class A1R (EN 54-5)
• Built-in short-circuit isolator (EN 54-17)
• Advanced Protocol, address set with rotary switches (01–159)
• 2 red LEDs, visible 360°
• Fits the MI/B501AP/IV base
• LPCB approved

Technical data
