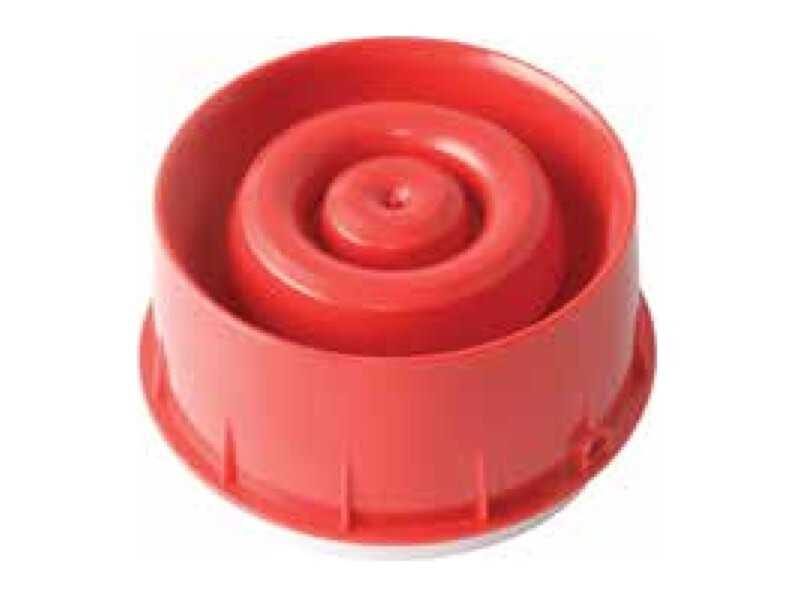

Morley WSO-PR-I05 addressable wall sounder | red | with isolator | EN 54-3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€107.00 €133

Pre-order

SKU

WSO-PR-I05

Product files

Datasheet

Product details

Product parameters
Manufacturer	Honeywell

Toote kirjeldus

WSO-PR-I05 is a Morley addressable wall sounder that is installed like a detector: the common MI/B501AP/IV base is fitted at first fix and its shorting spring keeps the loop continuous without the device, so the sounder can be fitted only at commissioning. The piezo sounder draws little current, so more devices fit on a loop. The 32 tones are selected on the device; with the WRR base the protection rating is IP65.

Key features

Addressable wall sounder, loop powered
Built-in isolator
Up to 97 dB(A) at 1 m, 32 tones
Fits the MI/B501AP/IV base, IP65 with the WRR base
Anti-tamper feature
EN 54-3, EN 54-17, LPCB

Technical data

Type	addressable wall sounder
Standards	EN 54-3, EN 54-17
Operating voltage	15–28 V DC
Standby current	225 µA
Alarm current	11.4 mA (high volume, tone 21 @ 24 V)
Sound output	97 dB(A) ±3 dB @ 1 m
Tones	32
Protection rating	IP24 (low-profile base), IP44 (surface base), IP65 (waterproof base)
Colour	red
Dimensions	Ø 121 mm, height 64 mm
Terminals	1.5–2.5 mm²
Weight	238 g
Operating temperature	−25 … +70 °C
Humidity	up to 95 %, non-condensing
