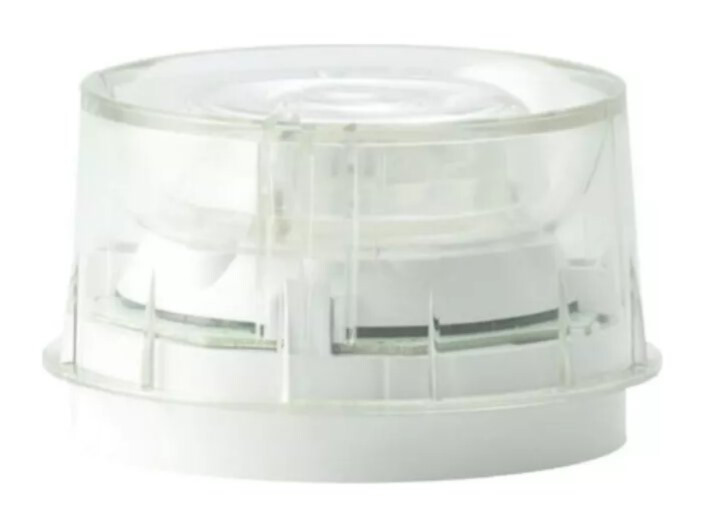

Morley WSS-PC-I05 addressable sounder strobe | white, clear lens | with isolator | EN 54-3/23

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€138.00 €171

Pre-order

SKU

WSS-PC-I05

Product files

Datasheet

Product details

Product parameters
Manufacturer	Honeywell

Toote kirjeldus

WSS-PC-I05 is a Morley addressable wall sounder strobe powered from the fire alarm loop. A powerful sounder and an intense flash warn building occupants with sound and light, and the sounder and strobe are synchronised automatically. The 32 tones and three volume levels can be set on the device or from the panel. The clear-lens version is approved to EN 54-23 as a category O visual alarm device. The device twists onto the MI/B501AP/IV base; a deep or IP65 base raises the protection rating.

Key features

Sounder + strobe, loop powered, with isolator
EN 54-23 category O visual alarm device (clear lens)
Up to 97 dB(A) at 1 m
32 tones, 3 volume levels
White body, clear lens
Fits the MI/B501AP/IV base

Technical data

Type	wall-mounted sounder strobe
Standards	EN 54-3, EN 54-17, EN 54-23 (O)
Operating voltage	15–29 V DC
Standby current	225 µA
Alarm current	max. 14.5 mA (high volume, tone 11 @ 15 V)
Sound output	97 dB(A) ±3 dB @ 1 m
Tones	32, 3 volume levels
Flash rate	1 Hz
Protection rating	IP21C (low-profile base), IP44 (surface base), IP65 (waterproof base)
Colour	white body, clear lens
Terminals	1.5–2.5 mm²
Weight	238 g
Operating temperature	−25 … +70 °C
Humidity	up to 95 %, non-condensing
