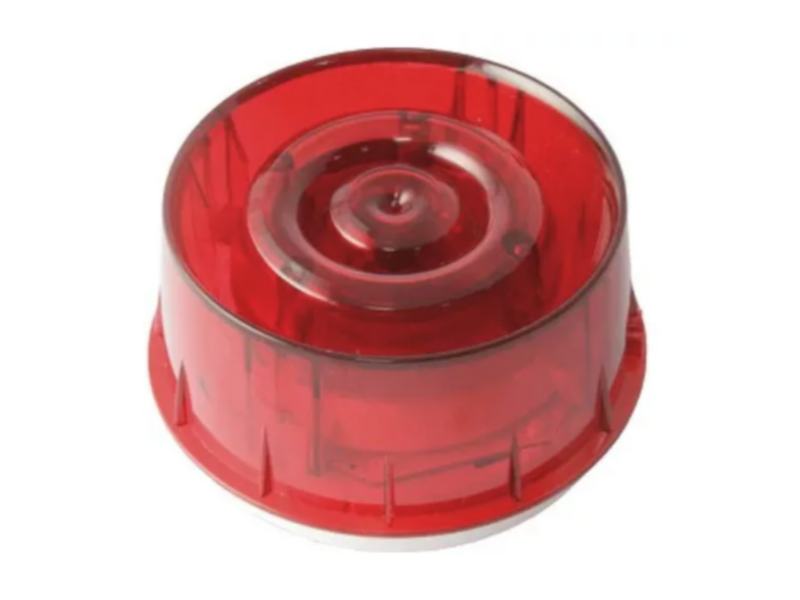

Morley WSS-PR-I05 addressable sounder strobe | white, red lens | with isolator | EN 54-3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€112.00 €139

Pre-order

SKU

WSS-PR-I05

Product files

Datasheet

Product details

Product parameters
Manufacturer	Honeywell

Toote kirjeldus

WSS-PR-I05 is a Morley addressable wall sounder strobe powered from the fire alarm loop. The piezo sounder and LED strobe draw little current, so more devices fit on a loop. The 32 tones and three volume levels can be set on the device or from the panel. The red-lens strobe is not approved to EN 54-23 as a visual alarm device and must not be used as the primary visual warning of fire – the clear-lens WSS-PC-I05 is meant for that. The device twists onto the MI/B501AP/IV base; a BRR or WRR base raises the protection rating.

Key features

Sounder + strobe, loop powered, with isolator
Sounder EN 54-3, EN 54-17
Red lens – not an EN 54-23 visual alarm device
Up to 97 dB(A) at 1 m, 32 tones
White body, red lens
Fits the MI/B501AP/IV base, IP65 with the WRR base

Technical data

Type	wall-mounted sounder strobe
Standards	EN 54-3, EN 54-17 (strobe not EN 54-23)
Operating voltage	15–29 V DC
Standby current	225 µA
Alarm current	max. 14.5 mA (high volume, tone 11 @ 15 V)
Sound output	97 dB(A) ±3 dB @ 1 m
Tones	32, 3 volume levels
Protection rating	IP21C (low-profile base), IP44 (surface base), IP65 (waterproof base)
Colour	white body, red lens
Dimensions	Ø 121 mm, height 64 mm
Terminals	1.5–2.5 mm²
Weight	238 g
Operating temperature	−25 … +70 °C
Humidity	up to 95 %, non-condensing
