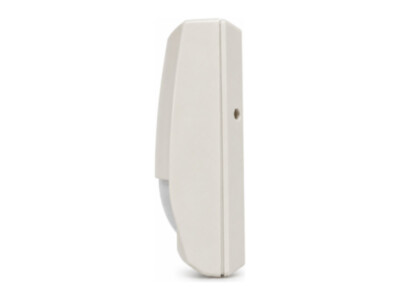

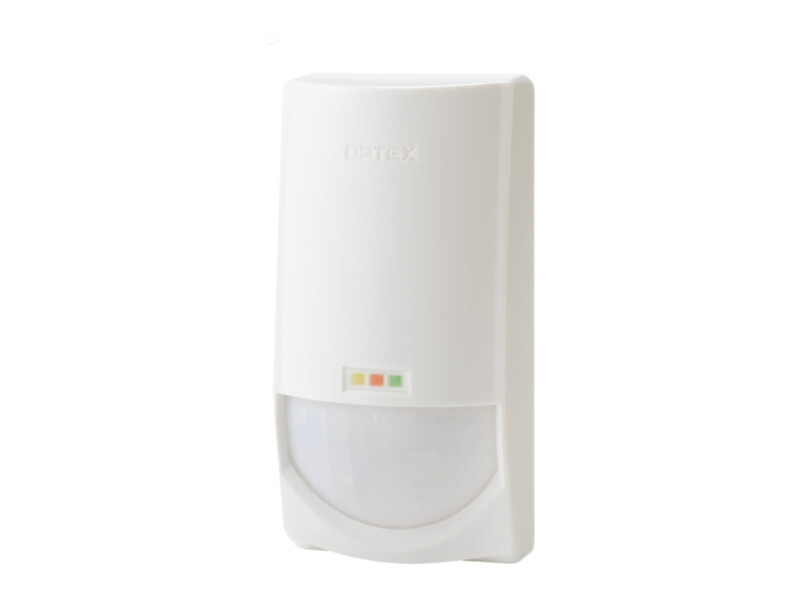

Optex CDX-NAM indoor motion detector | PIR | corridor 24 × 2 m | anti-masking | G3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€44.54 €55

In stock 7

SKU

CDX-NAM

Lõpumüügi toode, hind kehtib ainult laos olevale kogusele.

Product files

Datasheet

Product details

Product parameters
Manufacturer	Optex
Turvakategooria	Grade 3

Toote kirjeldus

Optex CDX-NAM is an indoor PIR motion detector whose narrow 24 × 2 m coverage is made for corridors. The coverage has 82 dense zones and an alarm is raised only when 4 or more zones are crossed, which tells people from small animals. Masking is detected with active infrared (AIR) technology that separates real masking from changes caused by dust, temperature and direct light. Double conductive shielding blocks visible light and RFI. Optex has discontinued the CDX series; the FlipX series replaces it.

Key features

Narrow 24 × 2 m coverage for corridors
Active infrared anti-masking
Digital QUAD zone logic
Double conductive shielding
EN 50131 Grade 3

Technical data

Detection method	Passive Infrared
Detection coverage	24 m × 2 m; narrow (20 zones)
Power supply	9 to 18 VDC
Current draw	17 mA (normal) / 20 mA (max.) at 12 VDC
Alarm output	N.C. 28 VDC 0.2 A max.
Trouble output	N.C. 28 VDC 0.2 A max.
Operating temperature	-10 to +50°C
Relative humidity	95% max.
Installation	Indoor
Mounting height	1.8 to 2.4 m
Weight	150 g
Dimensions	140 mm × 70 mm × 52.3 mm
