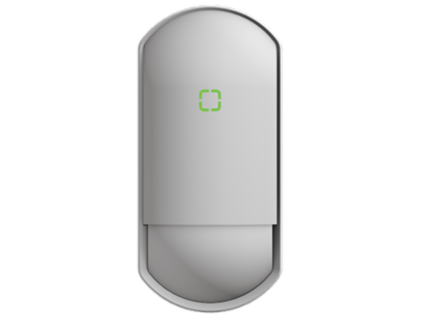

Optex FLX-S-DT indoor dual-tech detector | PIR + microwave | 12 m wide / 18 m narrow | G2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€35.00 €43

In stock 18

SKU

FLX-S-DT

Product files

Datasheet

Product details

Product parameters
Manufacturer	Optex
Turvakategooria	Grade 2
Anti-masking	No
Kahesüsteemne	No
Sobib välipaigalduseks	No
Loomakindel	No

Toote kirjeldus

Optex FLX-S-DT is part of the FlipX Standard series: a Grade 2 dual-technology (PIR + microwave) indoor detector for homes and small commercial sites. Rotating the lens 180° switches between a 12 m, 85° wide coverage and an 18 m narrow corridor (PIR only in the narrow setting). The human-shaped pyroelectric element gives good pet tolerance and SMDA detection logic filters out temperature, brightness and moving shadows. Microwave confirms the PIR detection for more stable performance in challenging rooms.

Key features

PIR + microwave
Rotatable lens: 12 m wide (85°) or 18 m narrow (PIR only)
Superior pet tolerance with new pyro element
SMDA detection logic
Mounting height 2.0–3.0 m
EN 50131 Grade 2

Technical data

Detection method	Passive infrared & Microwave
Detection coverage	Wide: 12 m 85°/ Narrow: 18 m 5°
Power supply	9.5 to 16 VDC
Current draw	11 mA (normal) / 14 mA (max.) at 12 VDC
Alarm period	2.0 ± 0.5 s
Warm-up period	Approx. 60 s (LED blinks)
Alarm output	N.C. 24 V DC 0.1 A max. (Resistive load)
Trouble output	N.C. 24 V DC 0.1 A max. (Resistive load) (Open when the cover is removed)
Tamper output	N.C. 24 V DC 0.1 A max. (Resistive load) (Open when the cover is removed)
Operating temperature	-20°C to +45°C
Relative humidity	95% RH max.
Installation	Indoor
Mounting height	2.0 to 3.0 m
Weight	105 g
