Optex FLX-A-DAM indoor dual-tech detector | PIR + microwave | 15 m wide / 24 m narrow | anti-masking | G3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€77.87 €97

Pre-order

SKU

FLX-A-DAM

Product files

Datasheet

Product details

Product parameters
Manufacturer	Optex
Turvakategooria	Grade 3
Vaateväli	0-15m
Anti-masking	Yes
Kahesüsteemne	Yes
Sobib välipaigalduseks	No
Loomakindel	No

Toote kirjeldus

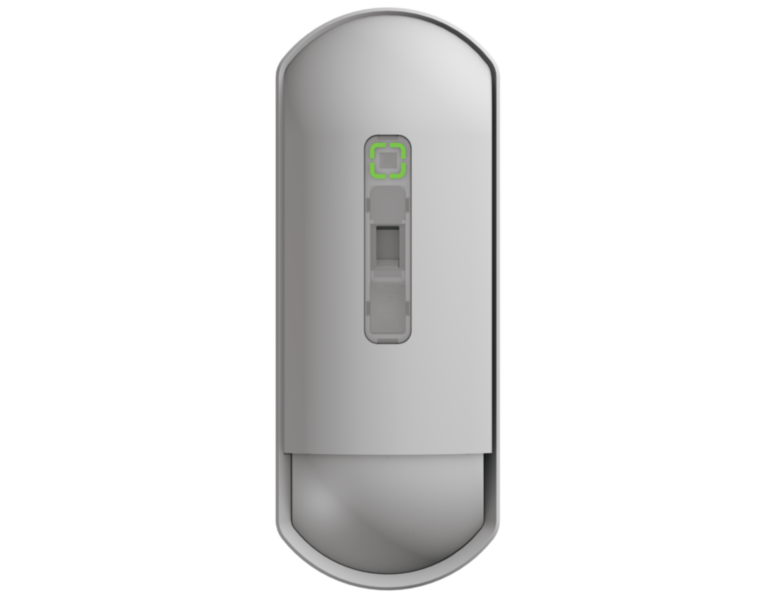

Optex FLX-A-DAM is part of the FlipX Advanced series: a Grade 3 dual-technology indoor detector combining PIR and microwave detection. Both technologies confirm movement together, which reduces unwanted alarms in demanding rooms. Rotating the lens 180° switches between a 15 m, 85° wide coverage and a 24 m narrow corridor (PIR only in the narrow setting). Two independent anti-masking functions – on the lens surface and on the microwave – detect covering. A super high sensitivity setting is added for high-risk sites.

Key features

PIR + microwave
Rotatable lens: 15 m wide (85°) or 24 m narrow (PIR only)
Two independent anti-masking functions
Super high sensitivity setting
Mounting height 2.0–3.0 m
EN 50131 Grade 3

Technical data

Detection method	Passive infrared & Microwave
Detection coverage	Wide: 15 m 85°/ Narrow: 24 m 5°
Power supply	9.5 to 16 VDC
Current draw	16 mA (normal) / 21 mA (max.)
Alarm period	2.0 ± 0.5 s
Warm-up period	Approx. 60 s (LED blinks)
Alarm output	N.C. 24 V DC 0.1 A max. (Resistive load)
Trouble output	N.C. 24 V DC 0.1 A max. (Resistive load) (Open when the cover is removed)
Tamper output	N.C. 24 V DC 0.1 A max. (Resistive load) (Open when the cover is removed)
Operating temperature	-20°C to +45°C
Relative humidity	95% RH max.
Installation	Indoor
Mounting height	2.0 to 3.0 m
Weight	200 g
