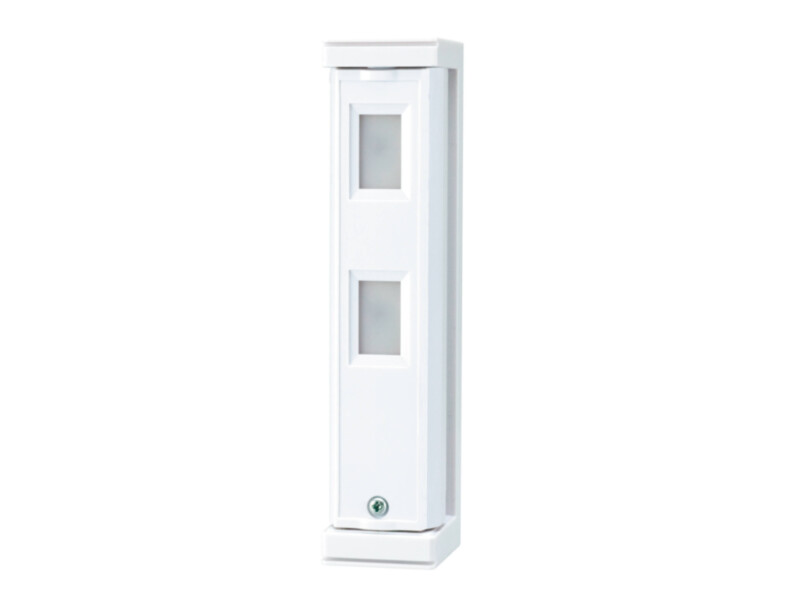

Optex FTN-AM outdoor curtain detector | PIR | 2 m / 5 m | anti-masking | IP55

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€123.33 €153

Pre-order

SKU

FTN-AM

Product files

Datasheet

Product details

Product parameters
Manufacturer	Optex
Turvakategooria	None
Vaateväli	0-15m
Anti-masking	Yes
Kahesüsteemne	No
Sobib välipaigalduseks	Yes
Loomakindel	Yes

Toote kirjeldus

Optex FTN-AM is a hardwired outdoor passive infrared (PIR) curtain detector with anti-masking. The curtain coverage length can be set to 2 m or 5 m. The detector is mounted at 0.8–1.2 m, the alarm output is selectable N.C./N.O. and the trouble output also opens when the cover is removed. Protection rating is IP55.

Key features

Curtain coverage 2 m or 5 m
Anti-masking
Alarm output selectable N.C./N.O.
Mounting height 0.8–1.2 m
Operating temperature −20 to +60 °C
IP55

Technical data

Detection method	Passive infrared
Detection coverage	2 m, 5 m
Detectable speed	0.3 - 1.5 m/s
Power supply	9.5 - 18 VDC
Current draw	20 mA (max.) (at 12 VDC)
Alarm period	2.0 ±1.0 s
Warm-up period	Approx. 60 s (LED blinks)
Alarm output	N.C./N.O. Selectable 28 VDC 0.1 A (max.)
Trouble output	N.C. 28 VDC 0.1 A (max.), open when the cover is removed.
Operating temperature	-20 - +60°C
Relative humidity	95% max.
Installation	Outdoor
Mounting height	0.8 - 1.2 m
Protection rating	IP55
Weight	100 g
