Optex FX-360 ceiling motion detector | PIR | 360° Ø 12 m | G2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€69.00 €86

Pre-order

SKU

FX-360

Product files

Datasheet

Product details

Product parameters
Manufacturer	Optex
Turvakategooria	Grade 2
Vaateväli	0-15m, 360°
Anti-masking	No
Kahesüsteemne	No
Sobib välipaigalduseks	No
Loomakindel	No

Toote kirjeldus

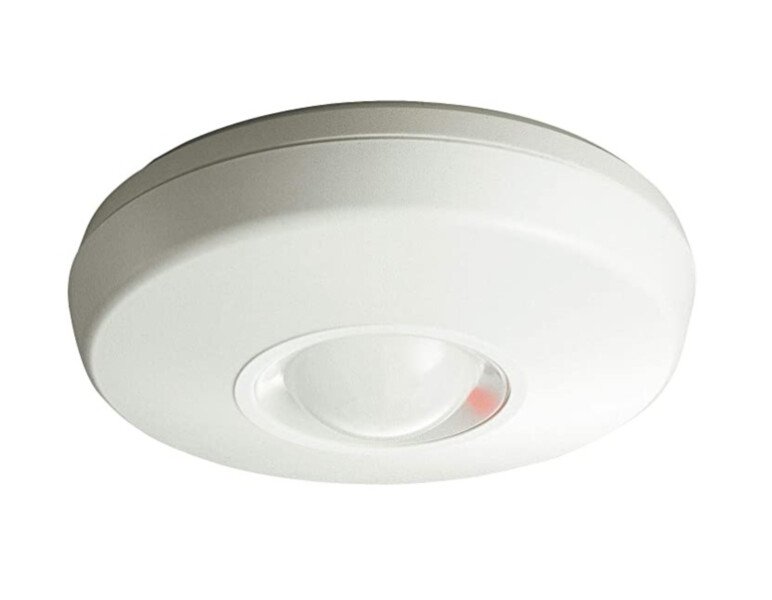

Optex FX-360 is a ceiling-mounted PIR motion detector with a 360° coverage of up to 12 m diameter – ideal for lobbies. The precise hard spherical lens gives reliable detection throughout the 360° area and the compact design suits any room. Mounting height is 2.4–3.6 m. Certification: PD6662:2010 Grade 2.

Key features

360° coverage, 8–12 m diameter
Hard spherical lens
False alarm protection
Warm-up indicator
Mounting height 2.4–3.6 m
PD6662:2010 Grade 2

Technical data

Detection method	Passive Infrared
Detection coverage	360°, Ø 8 to 12 m
Detectable speed	0.3 to 1.5 m/s
Power supply	9.5 to 18 VDC
Current draw	18 mA (max.) at 12 VDC
Warm-up period	Approx. 30 s (LED blinks)
Alarm output	N.C. 28 VDC 0.2 A max.
Relative humidity	95% max.
Installation	Indoor
Mounting height	2.4 to 3.6 m
Weight	140 g
Dimensions	120 mm × 37 mm
