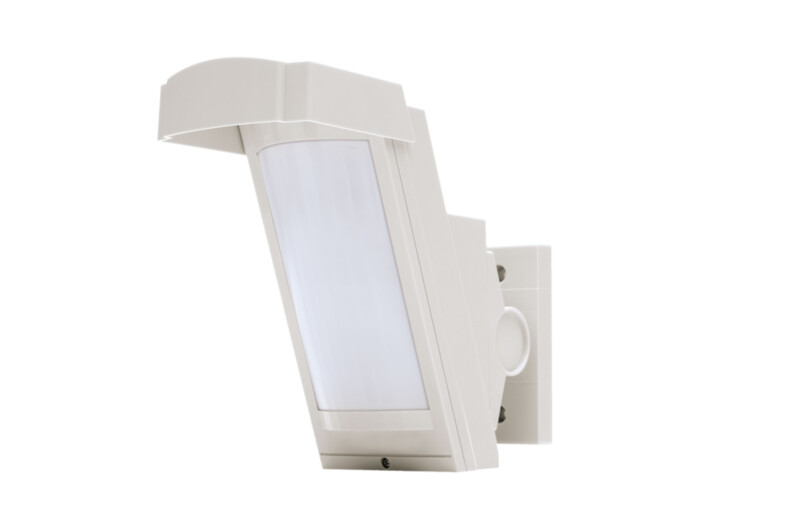

Optex HX-40 outdoor motion detector | PIR | 12 m 85° | IP55

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€210.53 €261

Pre-order

SKU

HX-40

Product files

Datasheet

Product details

Product parameters
Manufacturer	Optex
Turvakategooria	None
Vaateväli	0-15m
Anti-masking	No
Kahesüsteemne	No
Sobib välipaigalduseks	Yes
Loomakindel	Yes

Toote kirjeldus

Optex HX-40 is an outdoor PIR motion detector mounted at 2.5–3 m that provides volumetric detection up to 12 m (85°, 94 zones). It is made to protect the approach to a building and to tell people from small to medium-sized animals, reducing the risk of false alarms. The detection range is adjustable and advanced temperature compensation keeps detection stable. HX-40 is the standard hardwired model; bracket, hood and area masking seals are included.

Key features

Volumetric coverage 12 m, 85°, 94 zones
Adjustable detection range
Pet tolerant
Advanced temperature compensation
Mounting height 2.5–3.0 m
IP55

Technical data

Detection method	Passive infrared
Detection coverage	12 m 85° wide / 94 zones
Detectable speed	0.3 to 2.0 m/s
Power supply	9.5 – 18 VDC
Current draw	35 mA (max) at 12 VDC
Alarm period	2.0 ±1 s
Warm-up period	Approx. 60 s (LED blinks)
Alarm output	Form C 28 VDC 0.2 A max
Tamper output	N.C. 28 VDC, 0.1 A max. N.C. open when cover is removed.
Operating temperature	-20 – +60°C
Relative humidity	95% max.
Installation	Outdoor
Mounting height	2.5 - 3.0 m
Protection rating	IP55
Weight	600 g
