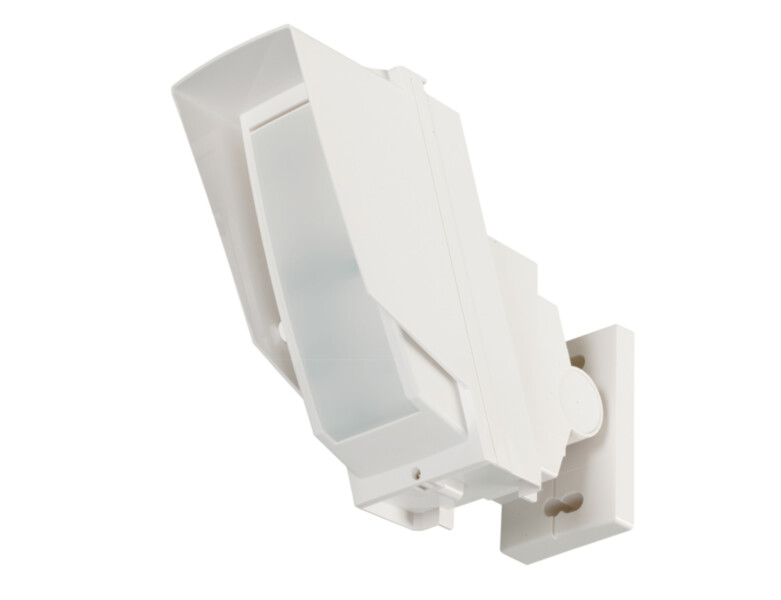

Optex HX-80NAM outdoor motion detector | PIR | narrow 24 × 2 m | anti-masking | IP55

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€266.00 €330

Pre-order

SKU

HX-80NAM

Product files

Datasheet

Product details

Product parameters
Manufacturer	Optex
Turvakategooria	None
Vaateväli	15-30m
Anti-masking	Yes
Kahesüsteemne	No
Sobib välipaigalduseks	Yes
Loomakindel	Yes

Toote kirjeldus

Optex HX-80NAM is an outdoor PIR motion detector mounted at 2.5–3 m with a narrow volumetric coverage of up to 24 m. It suits alleyways, areas along fences and the immediate approach to a building, and tells people from small to medium-sized animals. The bracket rotates 180° and tilts to follow the slope of the ground; built-in flaps and plates mask the longer or shorter range. Active infrared anti-masking reports when the detector is covered or sprayed. HX-80NAM is the hardwired anti-masking model of the HX-80 series.

Key features

Narrow coverage 24 × 2 m, 20 zones
Active infrared anti-masking
Pet tolerant
Adjustable and maskable range
Mounting height 2.5–3.0 m
IP55

Technical data

Detection method	Passive infrared
Detection coverage	24.0 m × 2.0 m narrow / 20 zones
Detectable speed	0.3 m/s - 1.5 m/s
Power supply	9.5 - 18 VDC
Current draw	40 mA (max) at 12 VDC
Alarm period	2.0 ±1 s
Warm-up period	Approx. 60 s (LED blinks)
Alarm output	Form C 28 VDC 0.2 A max
Trouble output	N.C. 28 VDC, 0.1 A max
Tamper output	N.C. 28 VDC, 0.1 A max. N.C. open when cover is removed.
Operating temperature	-20 – +60°C
Relative humidity	95% max.
Installation	Outdoor
Mounting height	2.5 - 3.0 m
Protection rating	IP55
Weight	720 g
