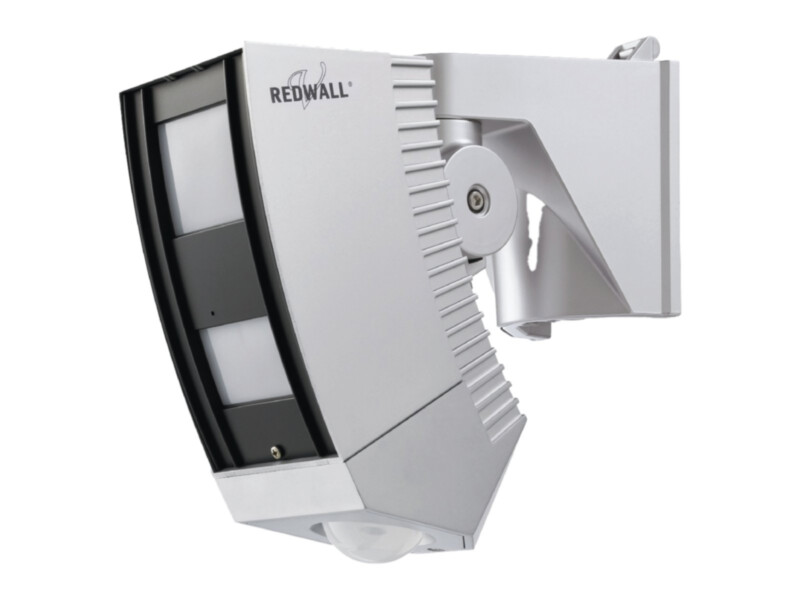

Optex REDWALL SIP-3020/5 outdoor detector | PIR | wide 30 × 20 m + creep zone | IP65

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€717.63 €890

Pre-order

SKU

SIP-3020/5

Product files

Datasheet

Product details

Product parameters
Turvakategooria	None
Vaateväli	15-30m, 30-60m
Anti-masking	Yes
Kahesüsteemne	No
Sobib välipaigalduseks	Yes
Loomakindel	No

Toote kirjeldus

Optex REDWALL SIP-3020/5 is a long-range outdoor PIR detector for triggering video transmission systems and controlling PTZ cameras. The coverage is 30 m long and 20 m wide, and an additional PIR detector on the bottom watches the creep zone below the unit (up to 6 × 9 m) with an output separate from the main detection. The intelligent detection system adjusts sensitivity to ambient temperature and light. Anti-rotation and anti-masking functions detect vandalism and tampering. Ideal for car parks, yards and other wide areas.

Key features

Wide coverage 30 × 20 m
Creep zone below the unit (up to 6 × 9 m), separate output
Three independent zones: far, near, creep
Active infrared anti-masking, vandal resistant
Supply 11–26 VDC / 22–26 VAC
IP65 (main unit), IP55 (chassis)

Technical data

Detection method	Passive infrared
Detection coverage	30 × 20 m; Creep zone: 3 × 5 m installed at 2.3 m, 6 × 9 m installed at 4 m
Power supply	11-26 VDC 22-26 VAC, 22-26 VAC with optional heating unit
Current draw	45 mA max. (12 VDC) 85 mA max. (24 VAC), 425 mA max. (24 VAC) with optional heating unit
Alarm period	Approx. 2 s
Warm-up period	Approx. 60 s
Alarm output	N.O., N.C., 28 VDC 0.2 A max.
Trouble output	N.C., 28 VDC 0.2 A max.
Tamper output	N.C., 28 VDC 0.1 A max.
Operating temperature	-25 to +60°C, -40 to +60°C with optional heating unit
Installation	Outdoor
Mounting height	2.3 to 4 m
Protection rating	Main unit: IP65, Chassis: IP55
Weight	1.4 kg
Dimensions	248 × 102 × 266 mm
