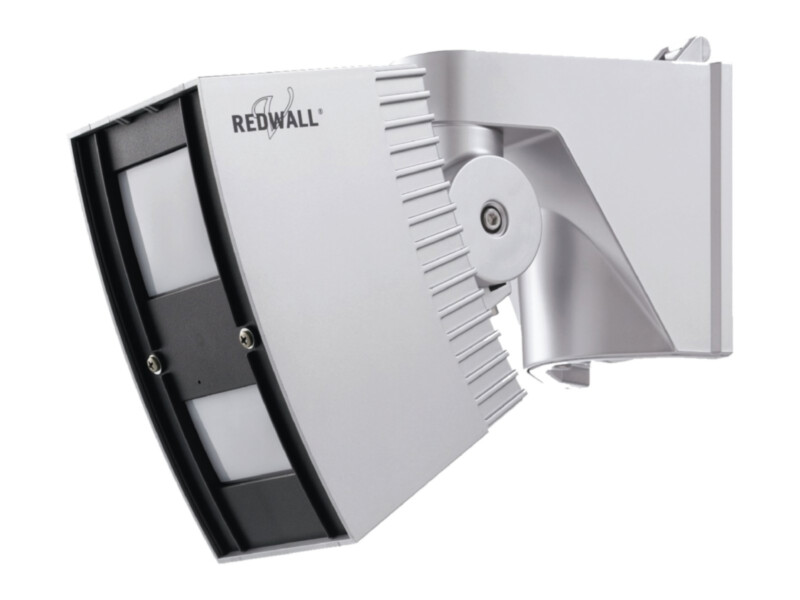

Optex REDWALL SIP-3020 outdoor detector | PIR | wide 30 × 20 m | IP65

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€512.17 €635

Pre-order

SKU

SIP-3020

Product files

Datasheet

Product details

Product parameters
Turvakategooria	None
Vaateväli	15-30m, 30-60m
Anti-masking	Yes
Kahesüsteemne	No
Sobib välipaigalduseks	Yes
Loomakindel	No

Toote kirjeldus

Optex REDWALL SIP-3020 is a long-range outdoor PIR detector with a wide 30 × 20 m coverage for car parks, yards and other wide areas and for triggering CCTV. Three dual pyro elements with patented double conductive shielding and an advanced detection algorithm give stable detection. The far and near zones have independent detection and sensitivity. AIR anti-masking and a vandal-resistant design protect against masking and tampering; with the optional heating unit the detector works down to −40 °C.

Key features

Wide coverage 30 × 20 m
Two independent zones: far and near
Three dual pyro elements, double conductive shielding
AIR anti-masking, vandal resistant
Supply 11–26 VDC / 22–26 VAC
IP65 (main unit), IP55 (chassis)

Technical data

Detection method	Passive infrared
Detection coverage	30 × 20 m
Power supply	11-26 VDC 22-26 VAC, 22-26 VDC/AC with optional heating unit
Current draw	40 mA max. (12 VDC) 75 mA max. (24 VAC), 415 mA max. (24 VAC) with optional heating unit
Alarm period	Approx. 2 s
Warm-up period	Approx. 60 s
Alarm output	N.O., N.C., 28 VDC 0.2 A max.
Trouble output	N.C., 28 VDC 0.2 A max.
Tamper output	N.C., 28 VDC 0.1 A max.
Operating temperature	-25 to +60°C, -40 to +60°C with optional heating unit
Installation	Outdoor
Mounting height	2.3 to 4 m
Protection rating	Main unit: IP65, Chassis: IP55
Weight	1.2 kg
Dimensions	227 × 102 × 266 mm
