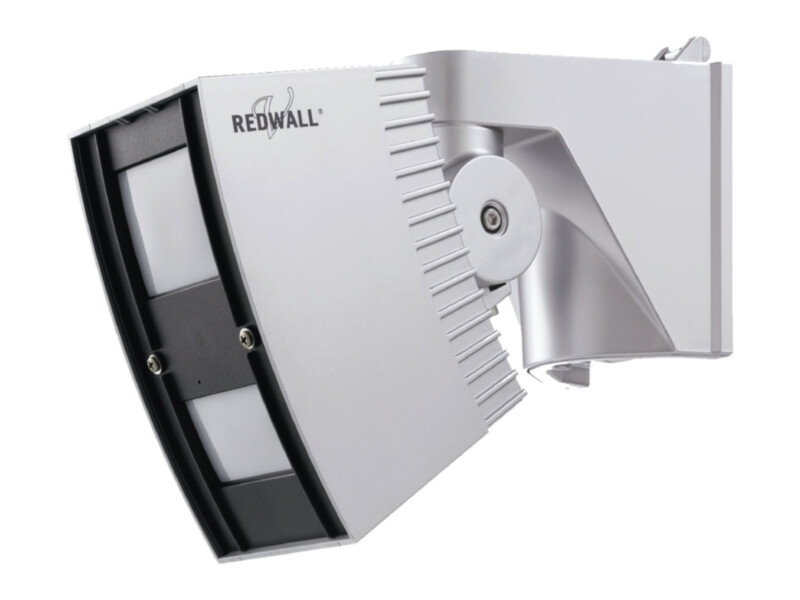

Optex REDWALL SIP-4010 outdoor detector | PIR | 40 × 10 m | IP65

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€512.17 €635

Pre-order

SKU

SIP-4010

Product files

Datasheet

Product details

Product parameters
Turvakategooria	None
Anti-masking	No
Kahesüsteemne	No
Sobib välipaigalduseks	No
Loomakindel	No

Toote kirjeldus

Optex REDWALL SIP-4010 is part of the REDWALL-V series for small and mid-sized outdoor areas. Its 40 × 10 m (L × W) coverage suits long and relatively wide site areas and triggering CCTV. The intelligent detection system adjusts sensitivity to ambient temperature and light. Far and near zones detect independently; active infrared anti-masking and a vandal-resistant design protect against tampering. The optional AVF-1 area view finder lets the installer see the detection area.

Key features

Coverage 40 × 10 m
Two independent zones: far and near
Sensitivity adapts to temperature and light
Active infrared anti-masking, vandal resistant
Supply 11–26 VDC / 22–26 VAC
IP65 (main unit), IP55 (chassis)

Technical data

Detection method	Passive infrared
Detection coverage	40 × 10 m
Power supply	11-26 VDC 22-26 VAC, 22-26 VDC/AC with optional heating unit
Current draw	40 mA max. (12 VDC) 75 mA max. (24 VAC), 415 mA max. (24 VAC) with optional heating unit
Alarm period	Approx. 2 s
Warm-up period	Approx. 60 s
Alarm output	N.O., N.C., 28 VDC 0.2 A max.
Trouble output	N.C., 28 VDC 0.2 A max.
Tamper output	N.C., 28 VDC 0.1 A max.
Operating temperature	-25 to +60°C, -40 to +60°C with optional heating unit
Installation	Outdoor
Mounting height	2.3 to 4 m
Protection rating	Main unit: IP65, Chassis: IP55
Weight	1.2 kg
Dimensions	227 × 102 × 266 mm
