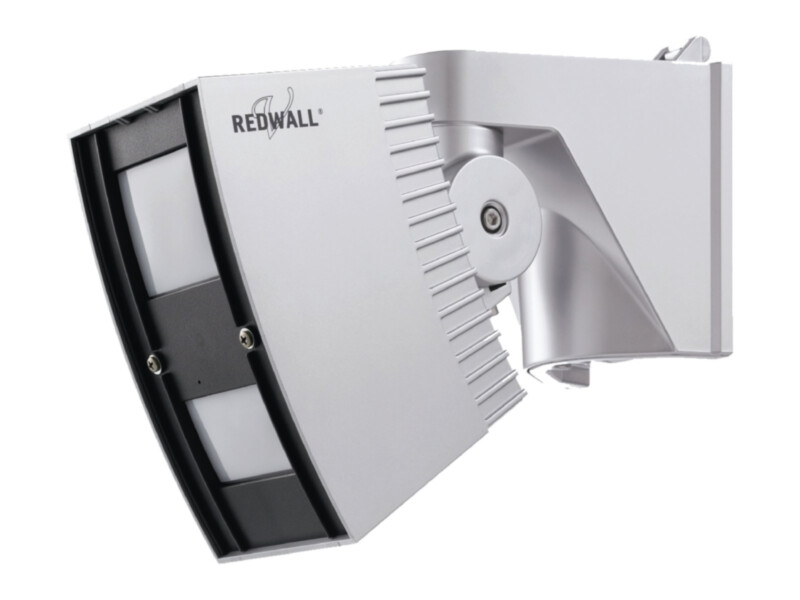

Optex REDWALL SIP-404 outdoor detector | PIR | narrow 40 × 4 m | IP65

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€512.17 €635

In stock 2

SKU

SIP-404

Product files

Datasheet

Product details

Product parameters
Turvakategooria	None
Vaateväli	30-60m
Anti-masking	Yes
Kahesüsteemne	No
Sobib välipaigalduseks	Yes
Loomakindel	No

Toote kirjeldus

Optex REDWALL SIP-404 is a long-range outdoor PIR detector with a narrow 40 × 4 m coverage for small and mid-sized outdoor areas, for example along a building wall or a fence. A detection logic selector adapts detection to the site. Far and near zone sensitivities are set separately; supply is 11–26 VDC or 22–26 VAC and with the optional heating unit the detector works down to −40 °C.

Key features

Narrow coverage 40 × 4 m
Detection logic selector
Far and near zones with separate sensitivity
Supply 11–26 VDC / 22–26 VAC
Mounting height 2.3–4 m
IP65 (main unit), IP55 (chassis)

Technical data

Detection method	Passive infrared
Detection coverage	40 × 4 m
Power supply	11-26 VDC 22-26 VAC, 22-26 VDC/AC with optional heating unit
Current draw	40 mA max. (12 VDC) 75 mA max. (24 VAC), 415 mA max. (24 VAC) with optional heating unit
Alarm period	Approx. 2 s
Warm-up period	Approx. 60 s
Alarm output	N.O., N.C., 28 VDC 0.2 A max.
Trouble output	N.C., 28 VDC 0.2 A max.
Tamper output	N.C., 28 VDC 0.1 A max.
Operating temperature	-25 to +60°C, -40 to +60°C with optional heating unit
Installation	Outdoor
Mounting height	2.3 to 4 m
Protection rating	Main unit: IP65, Chassis: IP55
Weight	1.2 kg
Dimensions	227 × 102 × 266 mm
