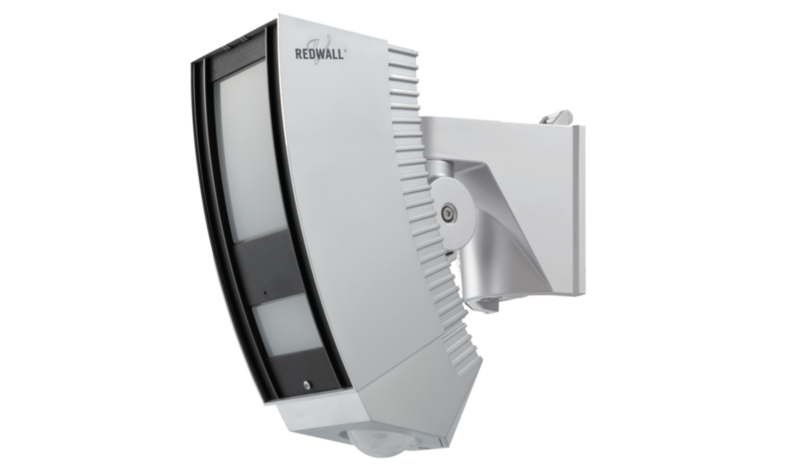

Optex REDWALL SIP-5030 outdoor detector | PIR | wide 50 × 30 m + creep zone | IP65

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€1,138.35 €1,412

Pre-order

SKU

SIP-5030

Product files

Datasheet

Product details

Product parameters
Manufacturer	Optex
Turvakategooria	None
Vaateväli	30-60m
Anti-masking	Yes
Kahesüsteemne	No
Sobib välipaigalduseks	Yes
Loomakindel	No

Toote kirjeldus

Optex REDWALL SIP-5030 is a long-range wide-angle outdoor PIR detector for large areas with a 50 × 30 m coverage. In addition it watches a creep zone right below the unit (3 × 5 m at 2.3 m height, 6 × 9 m at 4 m height). Far, near and creep zone sensitivities are set separately. Supply is 11–26 VDC or 22–26 VAC; with the optional heating unit the detector works down to −40 °C.

Key features

Wide coverage 50 × 30 m
Creep zone below the unit
Three zones with separate sensitivity: far, near, creep
Supply 11–26 VDC / 22–26 VAC
Mounting height 2.3–4 m
IP65 (main unit), IP55 (chassis)

Technical data

Detection method	Passive infrared
Detection coverage	50 × 30 m; Creep zone: 3 × 5 m installed at 2.3 m, 6 × 9 m installed at 4 m
Power supply	11-26 VDC 22-26 VAC, 22-26 VDC/AC with optional heating unit
Current draw	45 mA max. (12 VDC), 85 mA max. (24 VAC), 425 mA max. (24 VAC) with optional heating unit
Alarm period	Approx. 2 s
Warm-up period	Approx. 60 s
Alarm output	N.O., N.C., 28 VDC 0.2 A max.
Trouble output	N.C., 28 VDC 0.2 A max.
Tamper output	N.C., 28 VDC 0.1 A max.
Operating temperature	-25 to +60°C, -40 to +60°C with optional heating unit
Installation	Outdoor
Mounting height	2.3 to 4 m
Protection rating	Main unit: IP65, Chassis: IP55
Weight	1.6 kg
Dimensions	271 × 102 × 290 mm
